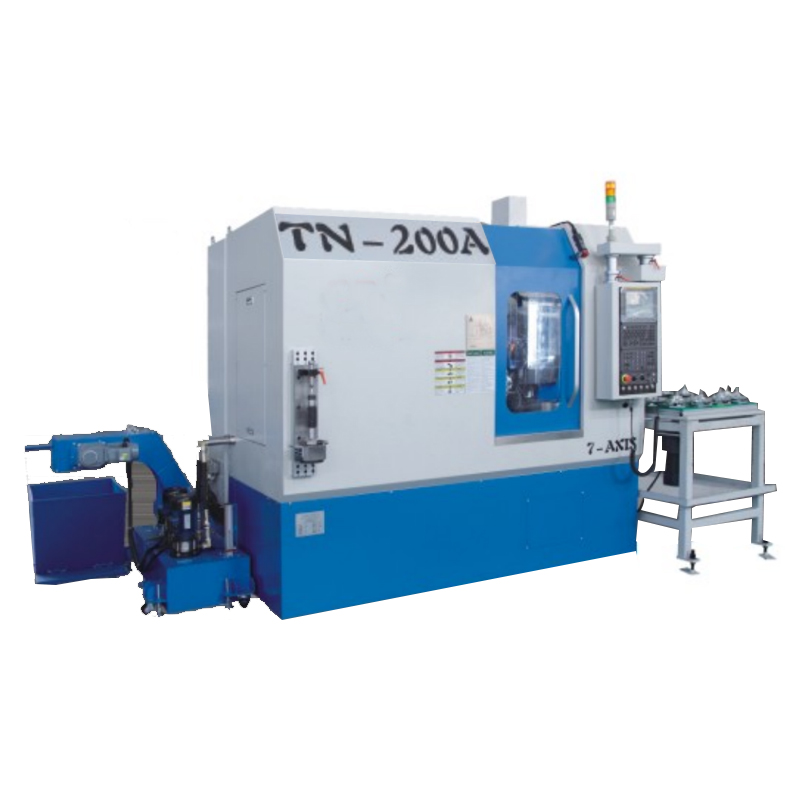

Good Quality TN-200 35 KVA CNC High Speed Hobbing Machine With FANUC 0i-MF Plus System

The CNC high-speed hobbing machine is a cutting-edge equipment designed for the high-precision and efficient production of gears.This advanced machine utilizes computer numerical control (CNC) technology to automate the hobbing process, ensuring exceptional accuracy and productivity.Applicable scope......
Send Inquiry
Product Description
Good Quality TN-200 35 KVA CNC High Speed Hobbing Machine With FANUC 0i-MF Plus System

The CNC high-speed hobbing machine is a cutting-edge equipment designed for the high-precision and efficient production of gears.
This advanced machine utilizes computer numerical control (CNC) technology to automate the hobbing process, ensuring exceptional accuracy and productivity.
Applicable scope Automotive, aerospace, power transmission, machinery manufacturing, and other industries requiring high-precision gears.
Workpiece
TN-200
TN-350

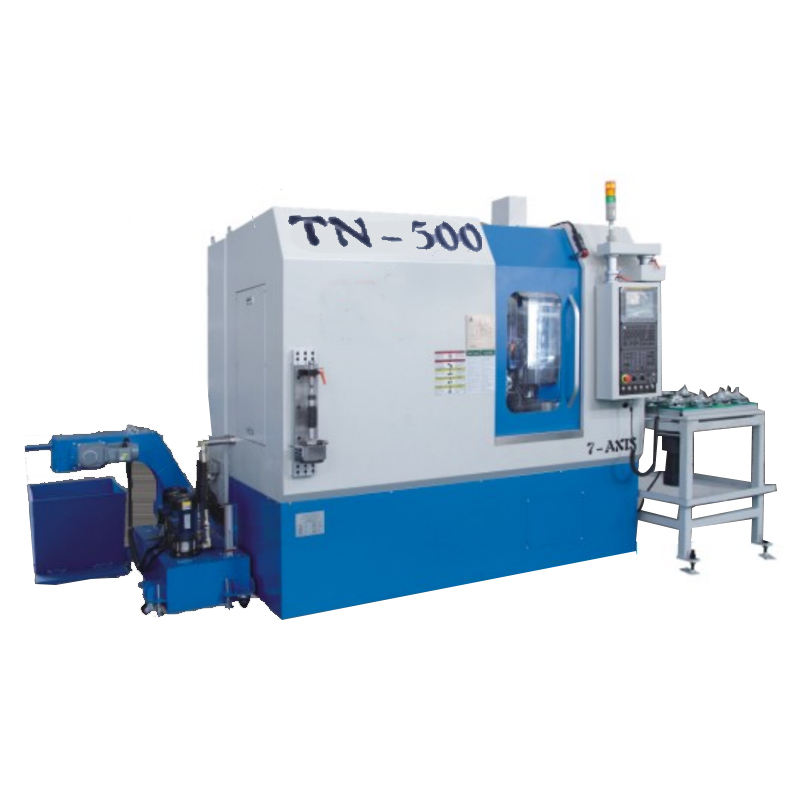

TN-500
Max. workpiece (OD.x Mod.)
Φ200mm xM6
Φ350mmxM8*4
Φ500mmxM14
Max.helix angel
±45°
±45°
±35°/-45°
Table diameter
Φ200mm
Φ260/Φ300mm*5
Φ450mm
Hob
Taper of spindle nose
BT#40
BT#40
BT#50
Max.Hob Size (OD.X L)
Φ150mmx220mm
Φ150mmx220mm
Φ200mmx240mm
Max. hob shift travel
180mm
180mm
240mm
Motion parameters
Hob spindle ( B axis)
Max.1000rpm
S1=358Nm S3=95.5Nm
Max.1000rpm
S1=35.8Nm S3-95.5Nm
Max.500rpm
S1=52.5Nm S3=118Nm
Table rotation ( C axis )
Max200rpm/300rpm6
Direct drive
900Nm/1000Nm6
Max.200rpm/300rpm
Direct drive
900Nm/1000Nm6
Max.100rpm
Direct drive
2000Nm
Radial Feed ( Xaxis )
Max.12000mm/min
250mm(35-285mm)
Max.12000mm/min
250mm(35-285mm)
Max.5000mm/min
310mm(90-400mm)
Tangential Feed ( Y axis )
Max2500mm/min
180mm(0-180mm)
Max.2500mm/min
180mm(0-180mm)
Max.1500mm/min
240mm(0-240mm)
Axial Feed(Zaxis)
Max.10000mm/min
240mm(150-390mm)
Max10000mm/min
250mm(150-400mm)
Max.3800mm/min
365mm(400-765mm)
Helix angel ( A axis )
Max.720deg/min
±45°
Max.720deg/min
±45°
Max.200deg/min
+35°/-45
Hyd. tailstock ( U axis)
Max.6000mm/min
300mm(340-640mm)
Max.6000mm/min
350mm(340-690mm)
Max.5000mm/min
380mm(250-630mm)
Machine specifications
Main Power
35KVA
35KVA
40KVA
Control system
FANUC Oi-MF PIus
FANUC Oi-MF PIus
FANUC Oi-MF PIus
(L x W x H) Floor space
3950x3450x2750mm(including peripheral layout)
3950x3450x2750mm(including peripheral layout)
4500x3700x3050mm(including peripheral layout)
Weight ( Approx.)
9.5ton
10.0ton
14.0ton
*4. Non automated processing can process up to 350mm in size, while automated processing can process up to 260mm in size; *5. When placing an order, it is necessary to place it according to the demand; *6. Standard 900Nm Max.200rpm, optional for high-speed and high torque
Good Quality TN-200 35 KVA CNC High Speed Hobbing Machine With FANUC 0i-MF Plus System

CNC machines

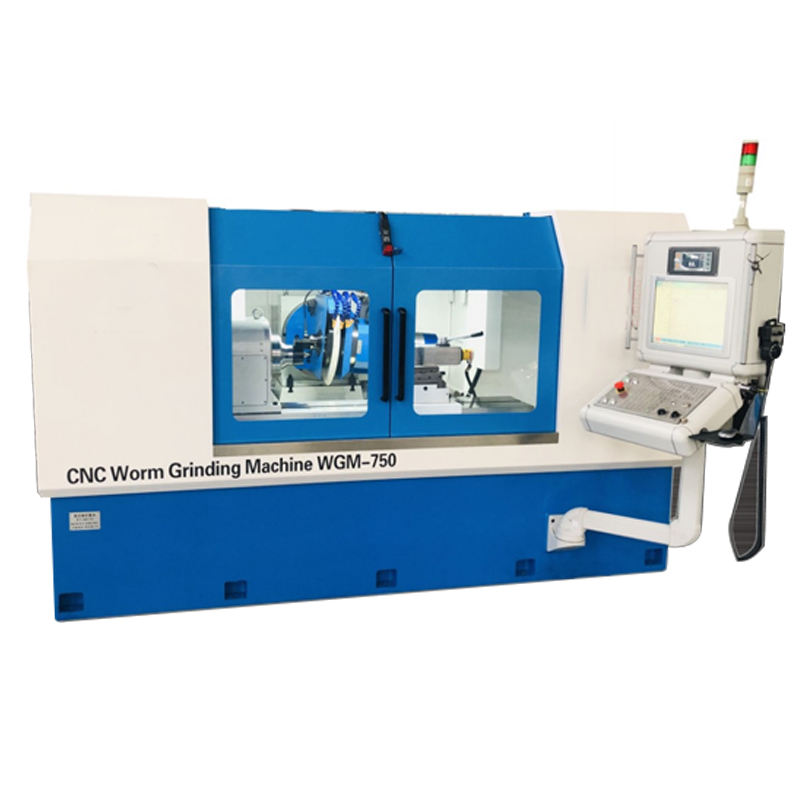

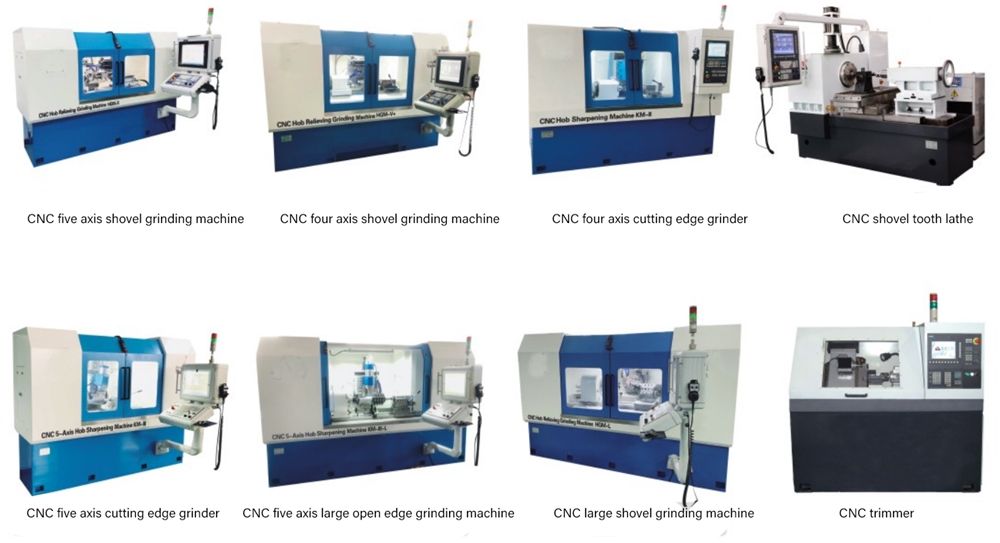

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter
Good Quality TN-200 35 KVA CNC High Speed Hobbing Machine With FANUC 0i-MF Plus System

Ever-power is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Ever-power not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.
Good Quality TN-200 35 KVA CNC High Speed Hobbing Machine With FANUC 0i-MF Plus System
Ever-power is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.
1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model
Good Quality TN-200 35 KVA CNC High Speed Hobbing Machine With FANUC 0i-MF Plus System
Ever-power has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.
Good Quality TN-200 35 KVA CNC High Speed Hobbing Machine With FANUC 0i-MF Plus System
We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
Good Quality TN-200 35 KVA CNC High Speed Hobbing Machine With FANUC 0i-MF Plus System

For more models or customization, please click here!
