Good Quality Multi way 8.5T valve Hydraulic valve for excavator

CharacteristicThe Multi-Way 6T Hydraulic Valve is a critical control component in excavators, designed to manage the flow and direction of hydraulic fluid to various actuators (cylinders, motors). The "6T" typically refers to 6 working ports (A, B, P, T, LS, etc.) and tandem center spool c......

Send Inquiry

Product Description

Characteristic

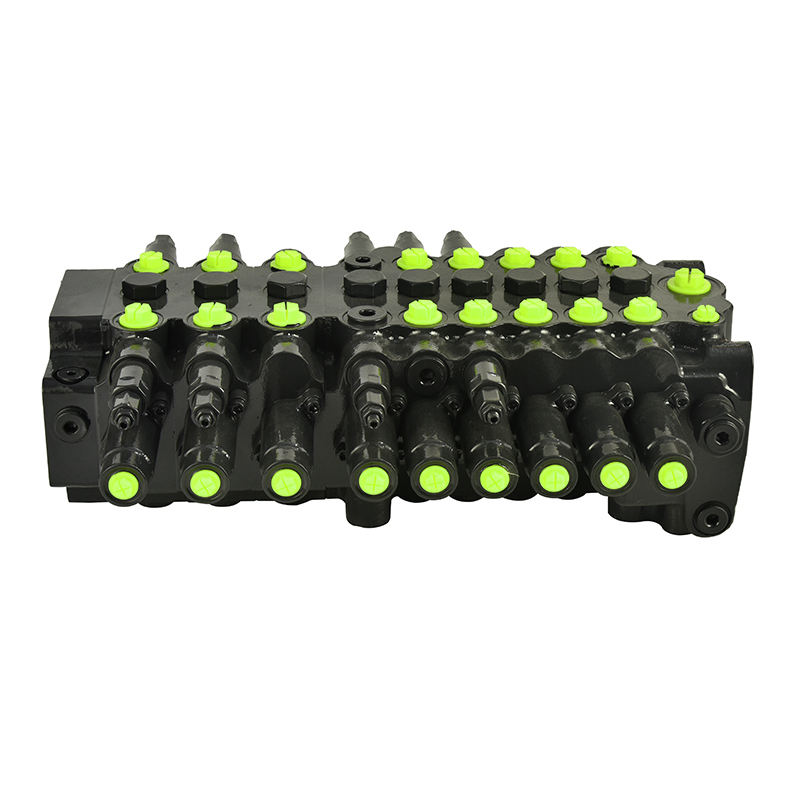

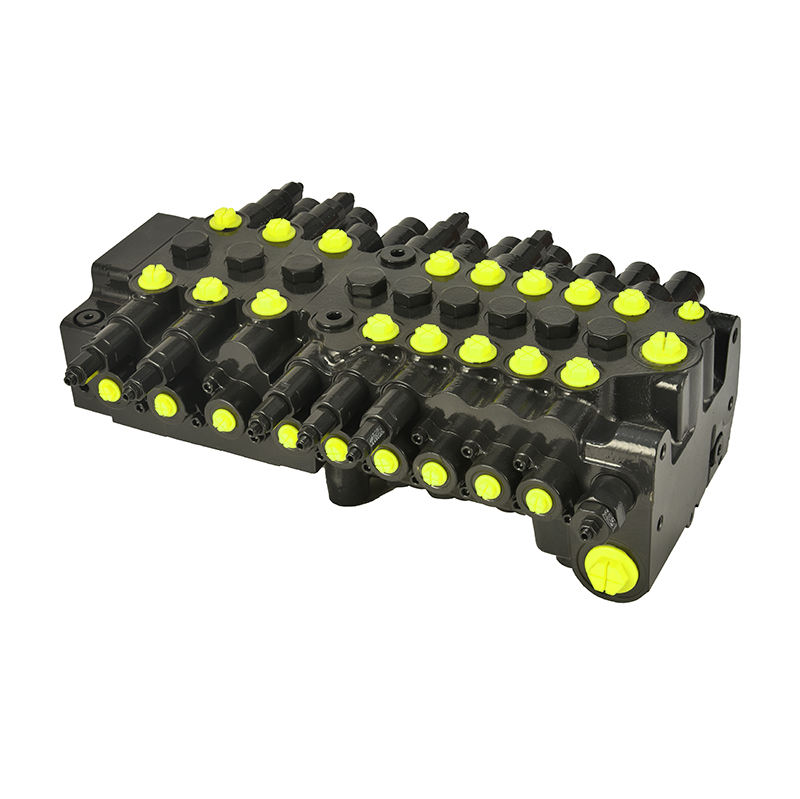

The Multi-Way 6T Hydraulic Valve is a critical control component in excavators, designed to manage the flow and direction of hydraulic fluid to various actuators (cylinders, motors). The "6T" typically refers to 6 working ports (A, B, P, T, LS, etc.) and tandem center spool configuration, making it ideal for complex hydraulic circuits in construction machinery.

Feature	8.5T Valve	6T Valve
Max Flow	300 L/min	200 L/min
Sections	8+0.5 modular	6 sections
Attachments	3 aux. circuits	1-2 aux. circuits
Control	Electro-hydraulic + CAN Bus	Manual/pilot operated
Efficiency	Advanced LS + compensation	Basic load sensing

Key Features
Enhanced Flow Capacity
Handles up to 250-300 L/min (vs. 100-200 L/min in 6T valves)

Rated pressure: 350-420 bar (5,000-6,100 psi)

Larger internal passages reduce pressure drops

Advanced Load Sensing (LS)
Pressure-compensated flow control for optimal pump matching

LS feedback port for dynamic system efficiency

Reduces fuel consumption by up to 15% vs. non-LS systems

Modular Section Design
8 main sections + 0.5 auxiliary section (for attachments)

Each section controls independent functions:
Boom

Arm

Bucket

Swing

Travel

3 auxiliary circuits

Electro-Hydraulic Proportional Control
Pilot-operated spools with electronic position feedback

CAN Bus compatibility for IoT-enabled excavators

Precision control resolution: ±0.5% of full stroke

Robust Construction
Carburized spools with hard chrome plating

Ductile iron body with anti-corrosion coating

ISO 4406 18/15/12 cleanliness compatibility

Application Scenarios:
Standard Machine Functions
Boom/Arm/Bucket precise movement control

Swing motor acceleration/deceleration management

Travel motor speed and direction regulation

Advanced Attachment Control
3rd auxiliary circuit for hydraulic breakers

4th auxiliary circuit for grapples/rotators

Proportional flow control for sensitive tools

Smart System Integration
Grade Control (auto-depth/angle maintenance)

Payload Monitoring (via pressure sensors)

Remote Diagnostics (valve performance tracking)

For more details, please click here to contact us!

EVER POWER has long been committed to management innovation and model innovation, actively exploring the path of enterprise informatization and digitalization, and taking the road of intelligent transformation with deep integration of manufacturing and the Internet. It has successively passed ISO9001 quality management system, IS014001 environmental system, OHSAS18001 occupational health and safety system certification, two-in-one management system assessment and DCMM data management capability maturity level assessment. The digital workshop built in 2019 was rated as a digital workshop in Zhejiang Province. From 2020 to 2021, the two-year construction period of the hydraulic motor smart factory project created the first automated, lean and intelligent "smart factory" in the hydraulic industry, making personnel productivity and batch product stability, new product development cycle, enterprise operating costs and other indicators achieve industry leadership. In 2022, the digital workshop for flexible processing of cycloidal motors was built, which passed the acceptance and was put into use in 2023, further promoting the upgrading of various business models and improving the company's management and operation capabilities. Hydraulic motors have been highly praised by the market for their small size, high torque and high safety. The domestic market share ranks among the top, accounting for nearly 61% of the market in Zhejiang Province. At the same time, the company actively explores the international market, and its products are exported to more than 80 countries and regions including Germany, the United Kingdom, Italy, the United States, Canada, Brazil, Russia, South Korea, etc. EVER POWER uses ingenuity to create excellent quality, takes it as its mission to create a national brand, and becomes a leader in the hydraulic ecology!

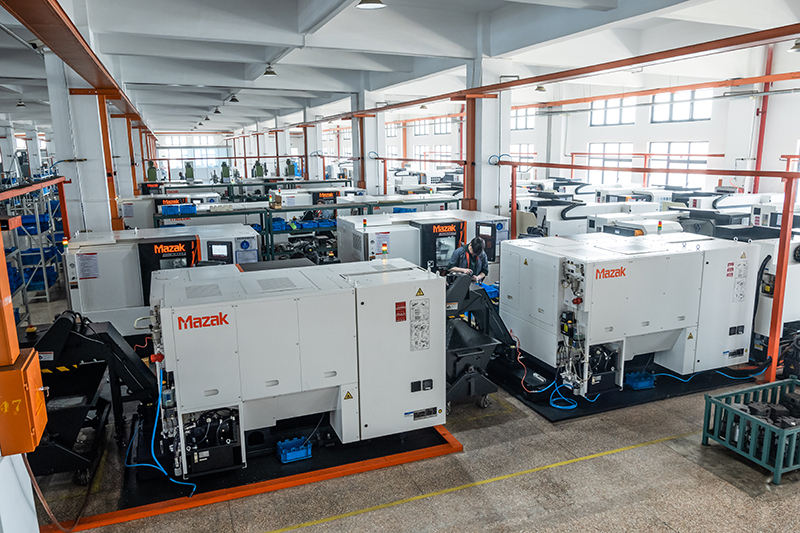

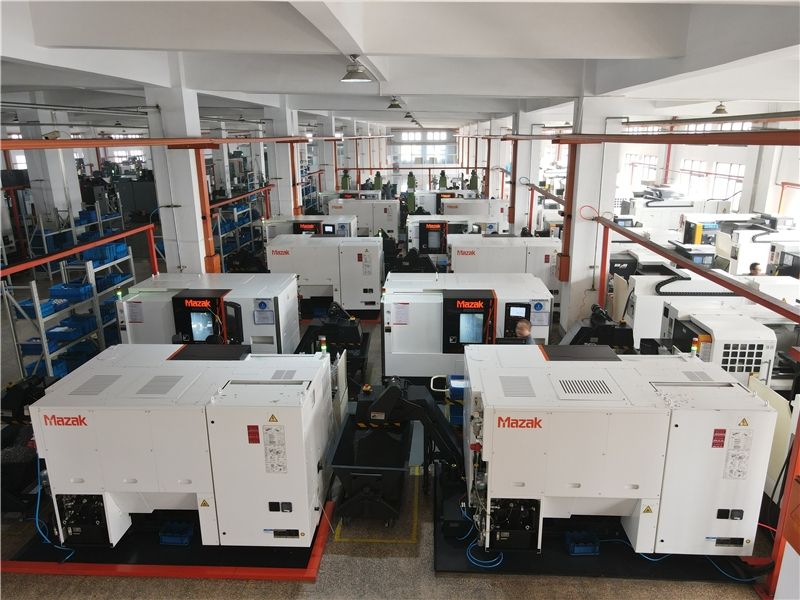

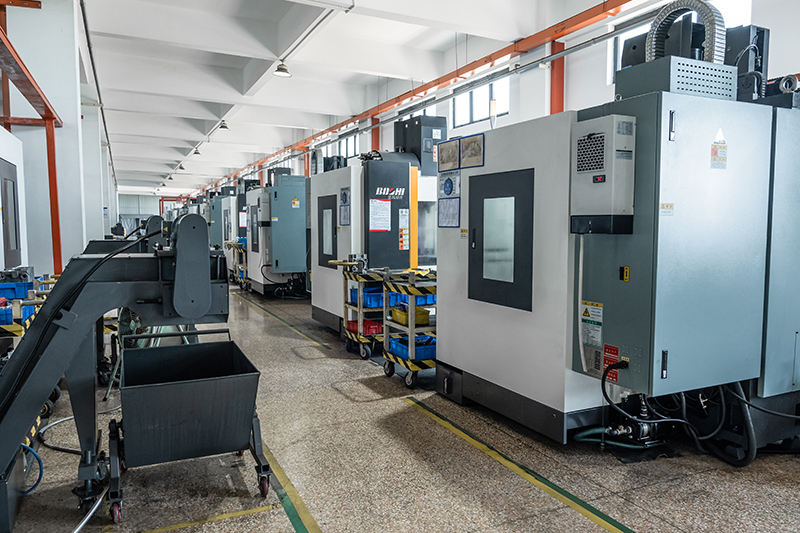

Our company has invested a total of 81 equipment, 39 machining centers, and 36 CNC machine tools in the production line, including 33 imported equipment, for the production and processing of a series of precision parts and accessories for the company, achieving automated production, reducing labor intensity and improving production efficiency, merging processes, and shortening the length of the production line. The equipment is mainly imported to improve the product assurance capability and market competitiveness of the entire production line.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
