American Standard 3TC Series Cast Iron Sheaves Pulley With Split Taper Bushings for Use With All C Section Belts
3TC Series Cast Iron Sheaves with Split Taper Bushings for Use with All "C" Section Belts3TC series three groove pulley is used for C, CX, belt and CC v-belt. Their diameters range from 7.40 inches to 24.40 inches. According to the pulley size, they use Q1 tapered bushing, which we also ha......
3TC Series Cast Iron Sheaves with Split Taper Bushings for Use with All "C" Section Belts

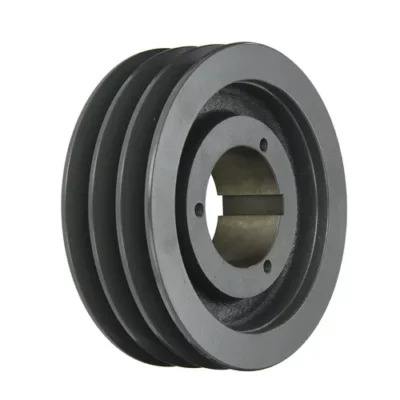

3TC series three groove pulley is used for C, CX, belt and CC v-belt. Their diameters range from 7.40 inches to 24.40 inches. According to the pulley size, they use Q1 tapered bushing, which we also have in stock. Most of our 3TC pulleys are made of high strength grade 35 cast iron, phosphate coated and coated with anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.

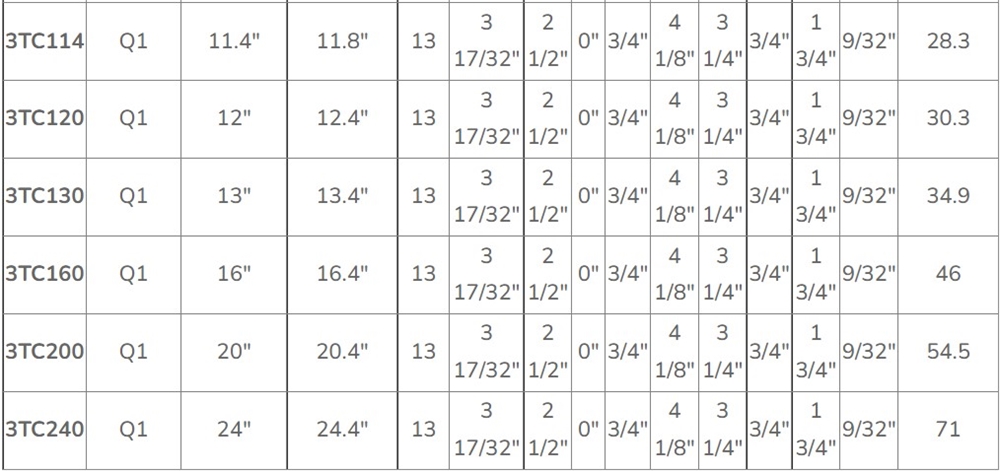

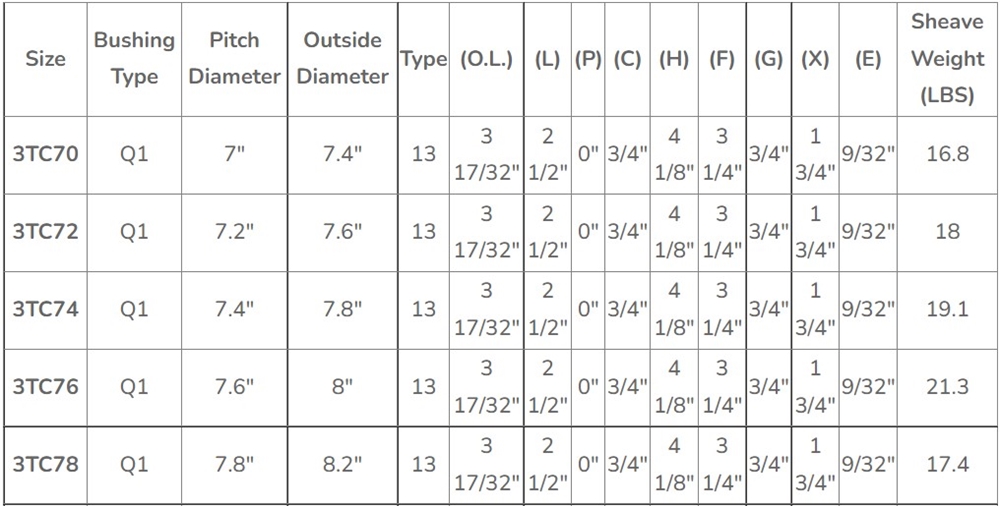

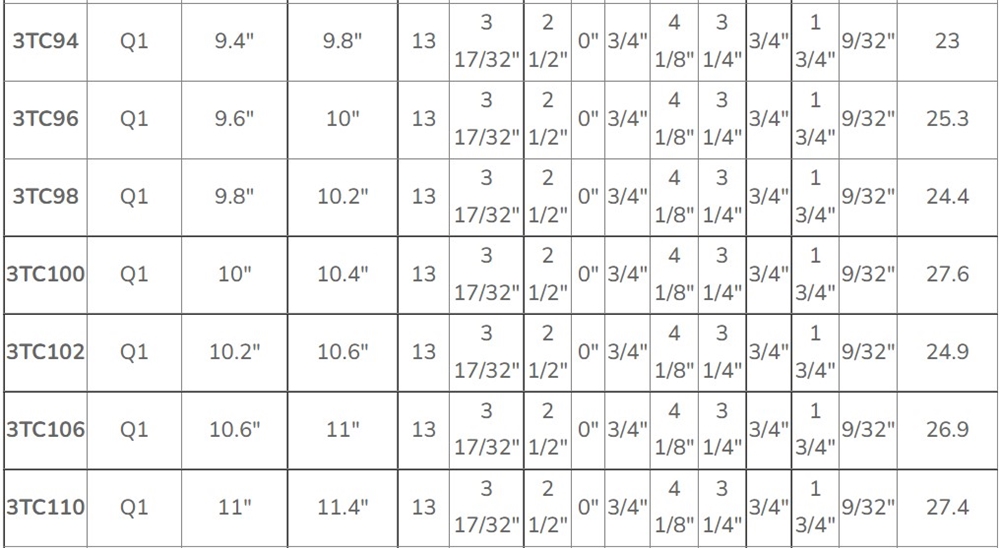

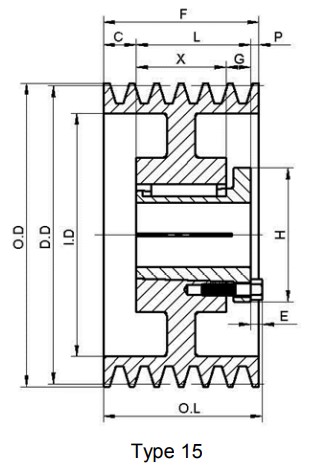

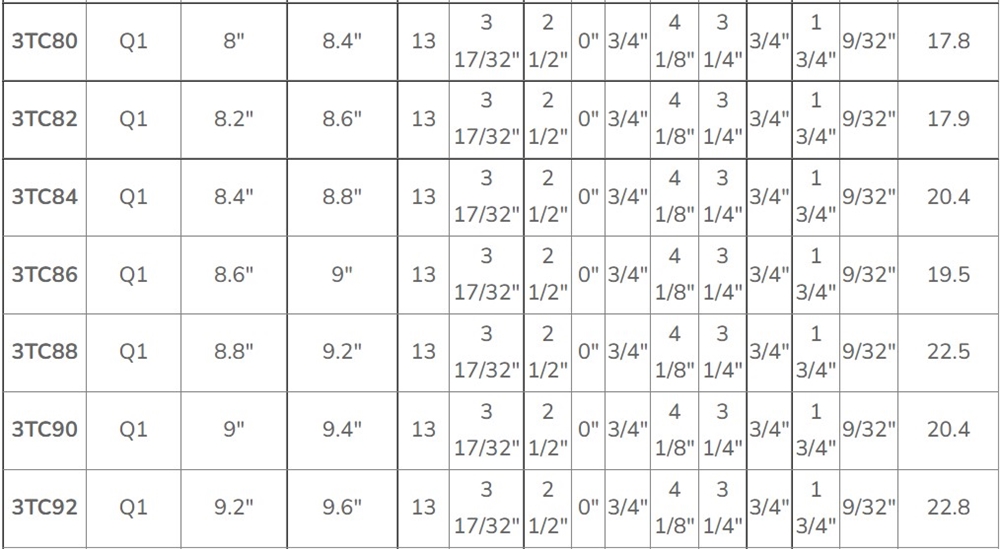

3TC Style Sheave Size Chart
For more details, please click here to contact us!
Features of 3TC series pulley:
*Easy to install and remove
*Reduce wear and prolong belt life
*Improve product versatility * Reduce noise
Introduction to V-belt pulley:
Different types of V-pulleys (depending on belt type and width). The material used is cast iron EN-GJL-250 UNI EN 1561, which is only applicable to a few types and is steel C45 E UNI EN 10083-1. They have a small carcass that can be processed according to customer requirements. In addition, the most common type is the tapered keyhole.

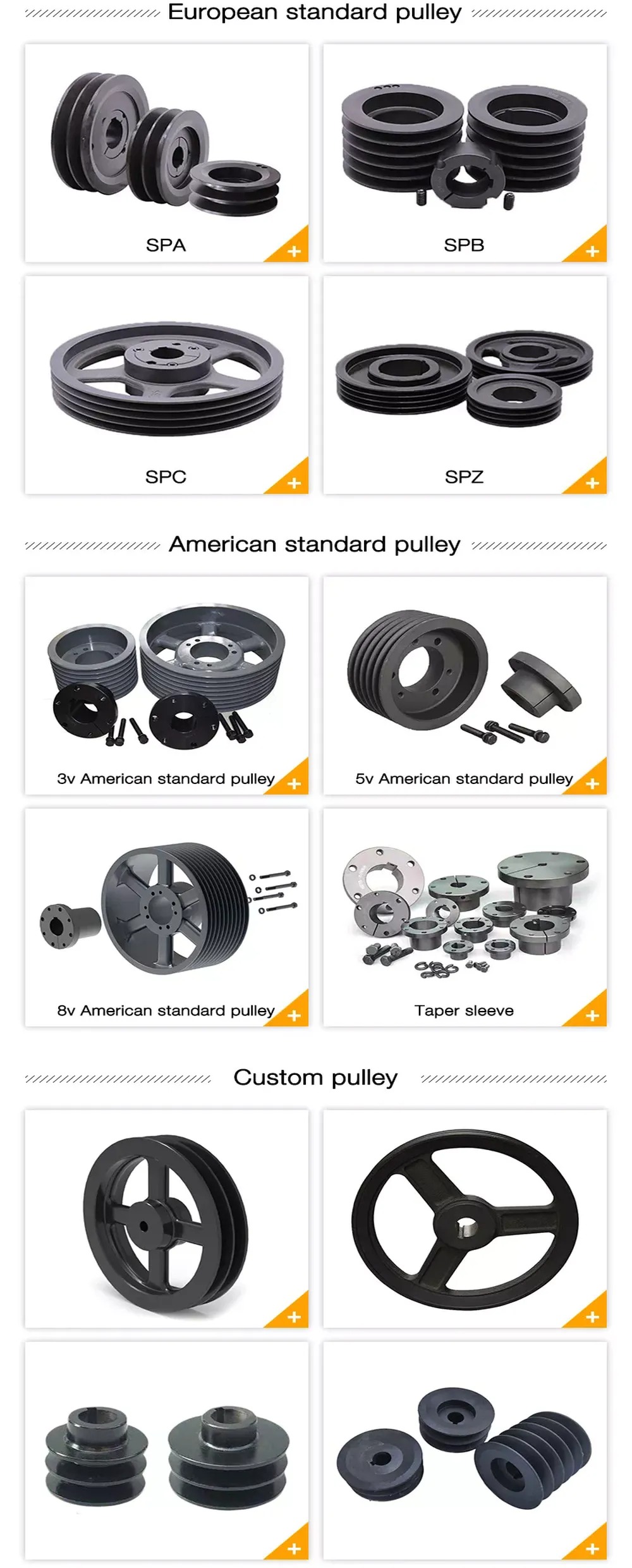

Specification of V-belt pulley
(1) European Standards:
a) V-belt pulley for tapered bushing: SPZ, SPA, SPB, SPC
b) Adjustable V-belt pulley and variable speed belt pulley
c) Flat pulley and conveyor pulley
(2) American Standard:
a) Tapered bushing pulley: 3V, 5V, 8V
b) Pulley of QD bushing: 3V, 5V, 8V
c) Split taper sleeve pulley: 3V, 5V, 8V
d) Pulleys for 3L, 4L or A, 5L or B belts: AK, AKH, 2AK, 2AKH, BK, BKH, 2BK, 2BKH and 3BK
e) Adjustable pulley: multi pitch H, L, J, K and M multi V pulley
1. Hole: guide hole, finishing hole, taper hole, QD bushing hole
2. Parts can be manufactured according to drawings and/or samples
3. We can provide 62MM~2000MM range size diameter
Related Products
We also provides belts matching pulleys:https://planetary-gearboxes.en.Raydafon/productgrouplist-825651128/Belt.html?spm=a2700.shop_pl.98.11
Technological Processing
Warehouse inventory
The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
FOR MORE DETAIL, PLEASE CONTACT US.
