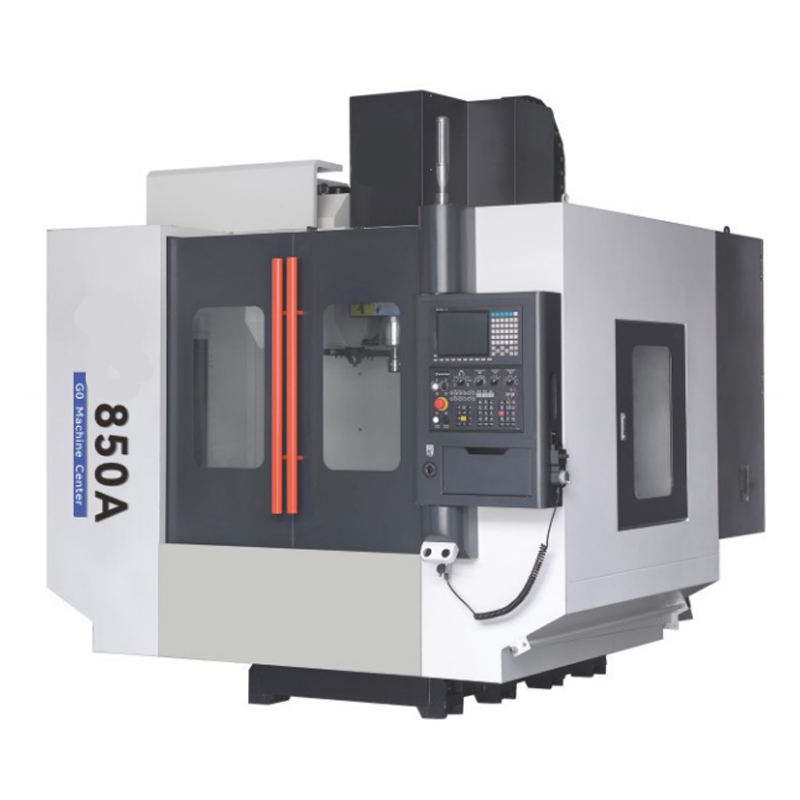

850A Vertical High Speed CNC Lathe Machining Center

Send Inquiry

Product Description

1.The bed guide rail adopts a large span size design, and the base is wide, solid, and stable, 2.The spindle column box structure, widened and enlarged saddle, and fully supported heavy load design provide guarantees for high speed and precision. 3.All three feed axes use precision linear guides imported from Taiwan to ensure the positioning accuracy of each axis. 4.The system has developed the functions of one key reset and one key tool change for tool magazine jamming. 5.Machine tool belts or directly connected spindles can be equipped with high-pressure center water outlet to improve processing efficiency.

Air pressure requirement: 6-8kg/cm2

Electrical component: schneider

Voltage requirement: 380V±5%50HZ

Temperature requiremen: 5-40℃

Ground connection: Must be reliably grounded

System configuration: New generation 22MA complete set

		unit	T600A
Travel	X-axis (left and right machining range)	mm	600
		Y-axis(front and back machining range)	mm	400
		Z-axis (upper and lower processing range)	mm	320
		Distance from spindle nose to work surface	mm	200-520
Work Table	Table size	mm	700*420
		T-shaped Cao dimensions	mm	143120
		Maximum table load	kg	250
Spindle	Spindle taper hole		BT30/BBT30
		Spindle speed	rpm	12000/20000
		Spindle drive mode
Feed	GO speed G01	m/min	48/48/48
		Maximum speed	mm/min	10000
		G01 Minimum speed	mm/min	0.001
Tool Library	Tool library type		BT30
		Tool storage capacity		Servo 21T
		Allowable weight	kg	3
		Maximum diameter	mm	φ140
		Adjacent tool change time	s	1.2
Machine Diameter	Footprint size	mm	180021002300
Machine Diameter		Machine weight	T	≈2.8
Accuracy	Positioning accuracy XYZ ( full stroke )	mm	0.005
Accuracy		Repeated positioning accuracy XYZ ( full stroke	mm	±0.003

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter

Ever-power is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Ever-power not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Ever-power is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

Ever-power has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

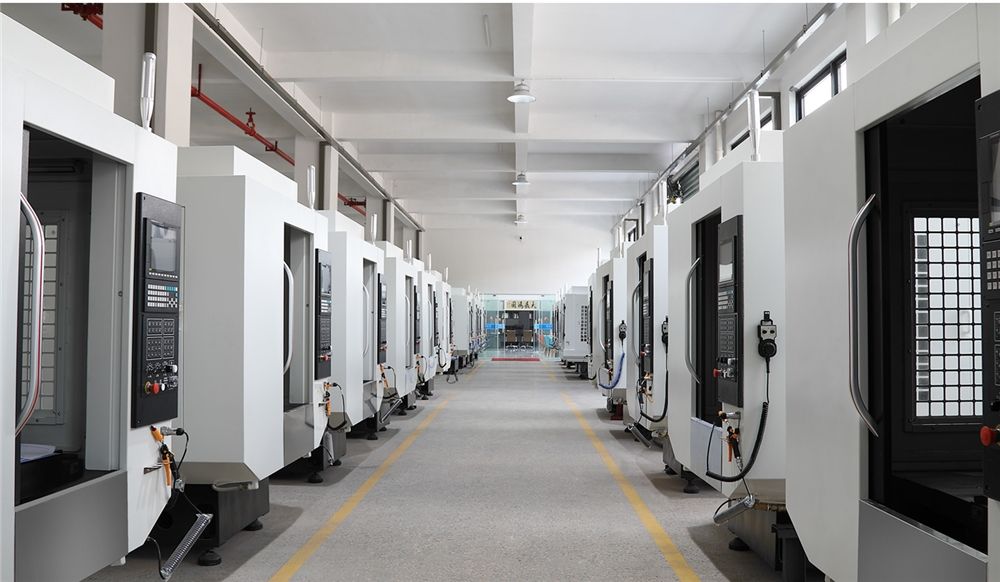

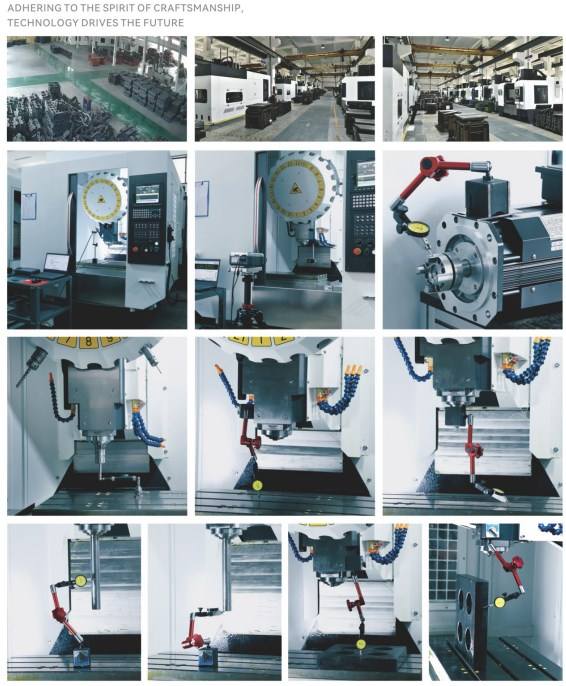

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
