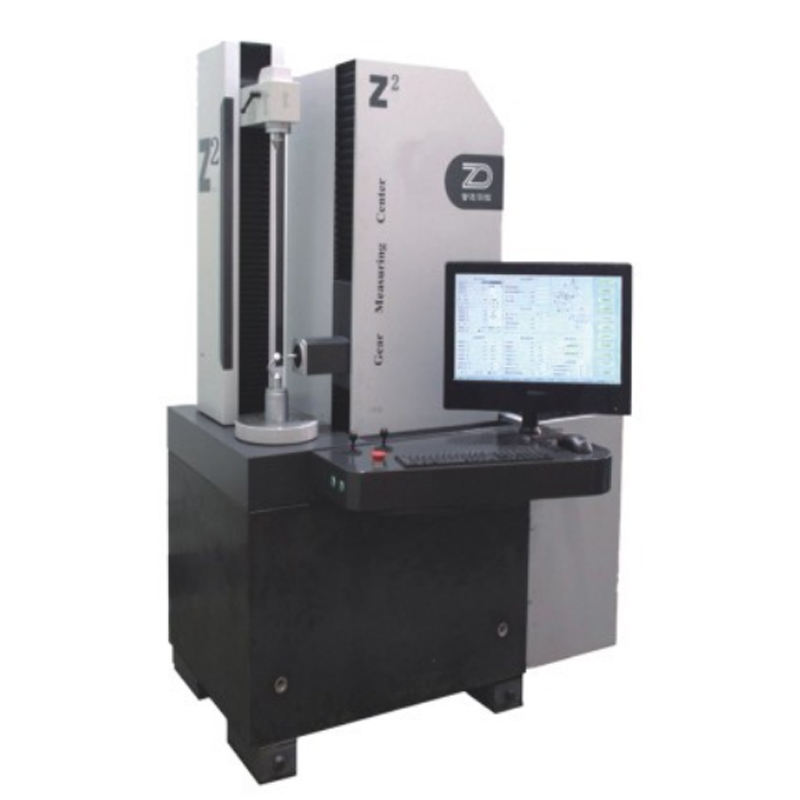

Widely Used High Orecision Zhida 3D Detector Measuring Equipment for Manufacturing

3D detectors measuring equipment refers to the devices and systems used for capturing and measuring three-dimensional data ofobjects or environments. These equipment types employ various technologies and methodologies to acquire accurate and precise measurements.Application ScopeDepth Sensors;Photog......

Send Inquiry

Product Description

3D detectors measuring equipment refers to the devices and systems used for capturing and measuring three-dimensional data of
objects or environments. These equipment types employ various technologies and methodologies to acquire accurate and precise measurements.

Application Scope

Depth Sensors;Photogrammetry Systems;

Coordinate Measuring Machines (CMMs);

Time-of-Flight (ToF) Cameras

How Does 3d Detectors Measuring Equipment Work?

3D detectors measuring equipment works by capturing and analyzing data about the three-dimensional geometry and spatial information of objects or environments. The specific workings of the equipment can vary depending on the technology used, but here are some general principles: 1. Laser Scanners: Laser scanners emit laser beams that sweep across the object or environment being scanned. The scanner measures the time it takes for the laser beam to bounce back to the scanner, using the principle of time-of-flight, or it measures the phase shift of the laser light. By combining these measurements with the known position and orientation of the scanner, it calculates the distance to various points on the object's surface, creating a 3D point cloud. 2. Structured Light Scanners: Structured light scanners project a known pattern of light, such as a grid or series of stripes, onto the object's surface. The scanner captures images of the pattern and analyzes the deformations of the projected pattern caused by the object's shape. By triangulating the deformations, it calculates the 3D coordinates of points on the object's surface. 3. Time-of-Flight (ToF) Cameras: ToF cameras emit light, often infrared light, and measure the time it takes for the light to travel to the object and back to the camera. By using the speed of light and the measured time, the camera calculates the distance to each pixel in the captured image, creating a depth map or point cloud representing the 3D structure. 4. Photogrammetry Systems: Photogrammetry systems use multiple images of an object or scene captured from different angles. The system identifies and matches common features in the images and calculates the parallax, which is the apparent shift in position of the features between images. By triangulating the parallax information, the system reconstructs the 3D structure of the object or scene. 5. Coordinate Measuring Machines (CMMs): CMMs use touch probes or optical sensors to physically or optically measure specific points on an object's surface. The CMM moves the probe or the object along predefined axes while collecting measurements. By combining the collected points, a 3D representation of the object can be constructed. These are simplified explanations of how 3D detectors measuring equipment typically work. In practice, the equipment may incorporate sophisticated algorithms, calibration procedures, and data processing techniques to enhance accuracy, remove noise, and generate detailed 3D models or point clouds.

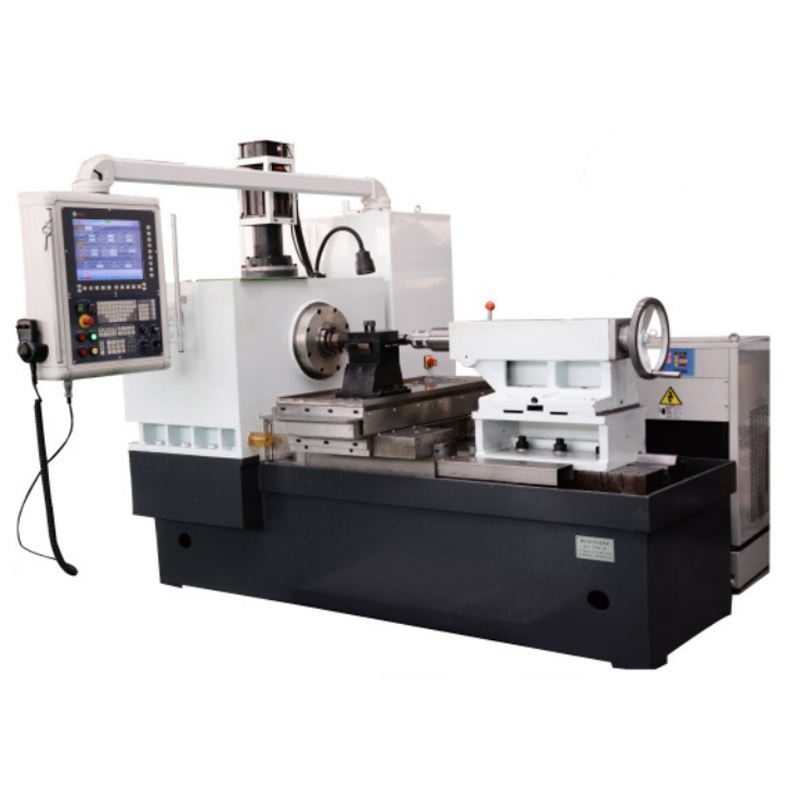

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter

Ever-power is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Ever-power not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Ever-power is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

Ever-power has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.

For more models or customization, please click here!

Hot Tags: Widely Used High Orecision Zhida 3d Detector Measuring Equipment For Manufacturing - Buy 3d Detector Measuring Equipment,Measuring Equipment,High Orecision Zhida 3d Detector Measuring Equipment For Manufacturing Product on Raydafon
