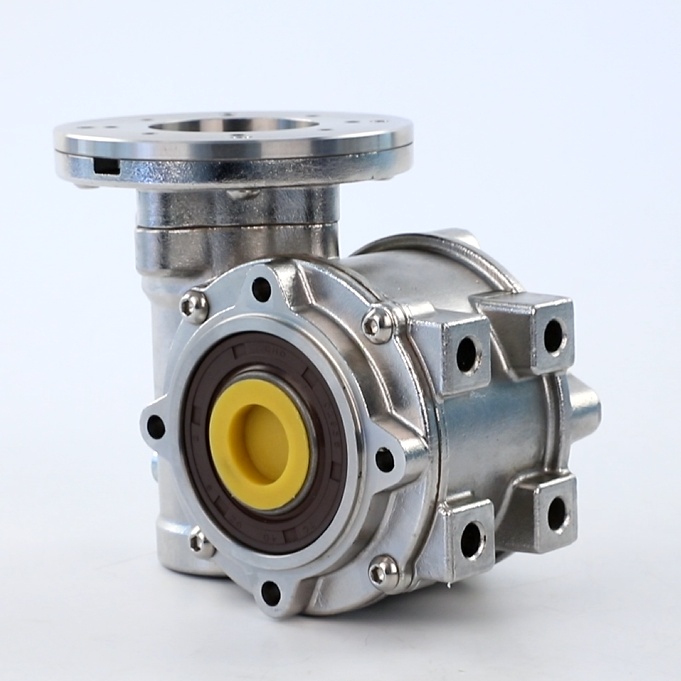

Vf Series Vf30 Vf40 Vf50 Vf63 Vf75 Waterproof Small Worm Gear Speed Reducer Gearbox for Car Washing Machine

VF SERIES WORM GEAR SPEED REDUCER VF series reducer for automatic car washer is a modified RV reducer used foauto car washer , which has the advantages of higher cost performance , wideapplicability and XRV ' s advantages . The install is more convenient and flexible thanXRV . The supporting mot......

Send Inquiry

Product Description

VF SERIES WORM GEAR SPEED REDUCER
VF series reducer for automatic car washer is a modified RV reducer used foauto car washer , which has the advantages of higher cost performance , wideapplicability and XRV ' s advantages . The install is more convenient and flexible thanXRV . The supporting motor power can be 0.25kw-0.75kw , and matching flanges , tomeet the different needs of customers

Features of Vf Series Car Wash Gearbox

1.Modular desian of every module , with more parts common 2.Large ratio range 3.IP Grade can reach IP67 , adapt to most spraying conditions 4.Compact and compact body can fit most equipment structure 5.Full-synthetic Oil lubrication(the viscosity of 320 / 220 can be choice) 6.The housing material is ADC12 with powder painting , better anticorrosive properties and appearance 7.Sealing with NOK oil seal (NBR ), good sealability .

8.Worms material is 20CrMnTi with carburizing and quenching , thickness 0.250 -0.45mm , HRC58-62

9.Wheels material is QT450 + Gcusn12 , to ensure the high wear resistance

speed ratio	Input flange	power
5/75/10/12/15/16/20/25/30/40/50/52/60/80/100	71B14	0.25kw,0.37kw ,0.55kw
5/75/10/12/15/16/20/25/30/40/50/52/60/80/100		80B14	0.55kw,0.75kw

How Car Wash Gearbox Works?

A car wash gearbox works by converting the input rotational motion and power from a motor into the desired output motion and torque required to drive various components within a car wash system. Here's a general overview of how a car wash gearbox functions: 1. Input Shaft: The gearbox receives rotational motion and power from an input shaft connected to a motor or drive system. This input shaft transfers the rotation to the gearbox's internal components. 2. Gearing System: The gearbox contains a system of gears that transmit and modify the rotational motion and torque. The gears are arranged in specific configurations, such as spur gears, helical gears, or planetary gears, depending on the gearbox design and requirements.

3. Speed Reduction or Increase: The gears within the gearbox are sized and arranged to achieve the desired speed reduction or increase. In car wash applications, speed reduction is often required to provide the necessary torque for driving components like brushes or conveyor belts at the desired speed. 4. Torque Transfer: As the input shaft rotates, the gears within the gearbox mesh and transfer the rotational force, effectively increasing or decreasing the torque depending on the gear ratio. This torque transfer allows the gearbox to deliver the required driving force to the car wash system's components. 5. Output Shaft: The output shaft of the gearbox transfers the modified rotational motion and torque to the driven components within the car wash system. This can include brush systems, conveyor belts, arches, pumps, or other components involved in the car wash process. 6. Control and Adjustment: Car wash gearboxes may incorporate additional features for control and adjustment. These can include variable speed control mechanisms, clutch systems for engaging/disengaging the gearbox, or other control mechanisms to fine-tune the operation and performance of the car wash system. The specific operation and internal configuration of a car wash gearbox can vary depending on the gearbox design, manufacturer, and specific application requirements. The gearbox design and gear arrangement are optimized to provide the necessary torque, speed, and control for driving the components within the car wash system effectively.

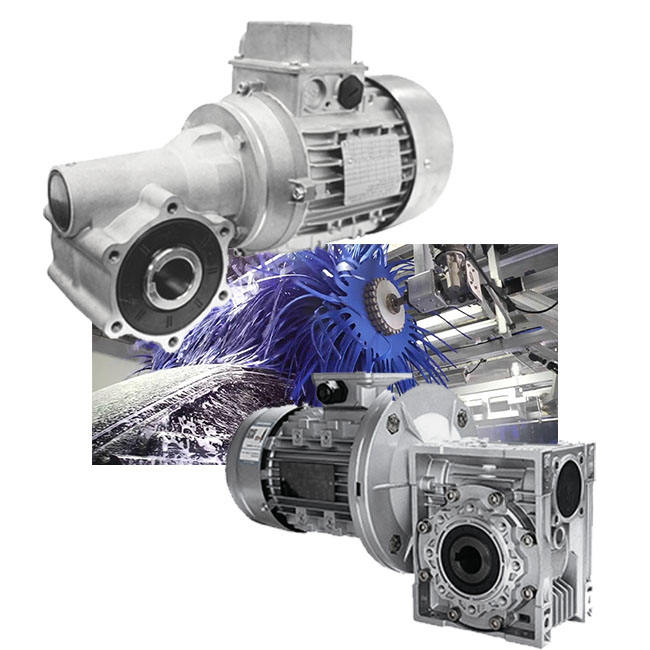

Application of Car Wash Gearbox

1.Brush Systems: Car wash gearboxes are commonly used to drive the rotating brushes that clean the exterior surfaces of vehicles. The gearbox provides the necessary torque and speed to ensure effective cleaning while allowing for adjustable brush rotation. 2.Conveyor Systems: Car wash gearboxes are employed in conveyor systems that move vehicles through the car wash process. The gearbox drives the conveyor belts or rollers, ensuring a smooth and controlled movement of vehicles through different cleaning stages. 3.Arch Systems: In car wash systems that utilize arches for applying soap, foam, wax, or other cleaning agents, gearboxes are used to control the movement and positioning of the arches. The gearbox allows for precise and synchronized operation of the arches for optimal application of cleaning solutions. 4.Drying Systems: Car wash gearboxes are utilized in drying systems, such as air blowers or drying curtains, to provide rotational motion and control the movement of drying elements. The gearbox ensures consistent and efficient drying of the vehicle's surfaces. 5.Pumping Systems: Some car wash systems utilize gearboxes in pumping systems for delivering water, cleaning solutions, or other fluids to various parts of the car wash process. The gearbox helps drive the pumps, providing the necessary pressure and flow rate for effective cleaning operations. 6.Miscellaneous Applications: Car wash gearboxes can be found in other components and mechanisms within a car wash system, such as water sprayers, oscillating nozzles, or rotating platforms for specialized cleaning or detailing purposes.

We are a manufacturer in Zhejiang Province, China. Our company owns the ability of manufacturing, processing, designing and R&D. We welcome your visit.
We handle the products of power transmission, our lines mainly cover series products in speed reducers, gearboxes , associated electricial motors and other power transmission accessories. Based on the versatile functions, our products can be utilized in many fields: machines of waste water treatment, dredgers, chemical industry, cranes, metal working mills, conveyors, paper industry, cement industry, cableways and so on.With the excellent quality and reasonable price , our products enjoy a good reputation from customers and the peers all over the world.
Our prices are always competitive. If the customer can place a large order, we surely will allow discount.
