Model 400 3-Point Post Hole Digger for Compact/Sub-Compact/Cat 0 Tractors Drill for Planting & Agriculture Applications

Raydafon Group's Model 400 3-Point Post Hole Digger for Compact/Sub-Compact/Cat 0 Tractors Drill for Planting & Agriculture Applications offers robust performance with durable materials and advanced design, ideal for farmers and gardeners to efficiently tackle planting tasks. Experience enhanced productivity and reliability, solving tough digging challenges with ease, making it a standout choice in its category.

Send Inquiry

Product Description

Model 400 three-point pile hole excavator suitable for compact/ultra-compact/class 0 tractors

Model 400 three-point pile digger is an agricultural equipment used to dig holes for fence piles, road signs or any other work requiring deep holes on the ground. It is specially designed to be connected to the rear of a tractor or similar vehicle to provide the necessary power for its operation. The 400 three-point rear hole excavator is composed of a heavy steel frame with a gearbox, which connects the auger of the excavator to the power output of the tractor. It has a three-point linkage which is connected to the hydraulic system of the tractor to raise and lower the excavator to the required position. The auger is a helical drill bit that rotates as the tractor engine turns the PTO shaft. As the auger gets deeper and deeper, the rotation of the auger forms a hole in the ground. The 400 three-point back-hole excavator has different configurations and different auger sizes, depending on the operation requirements. The use of 400 three-point backhole excavator requires a skilled operatorwith experience in operating agricultural equipment. The operator must understand the terrain, soil type, and the depth and width of the borehole required for the operation. In general, compared with manual excavation, the 400 three-point pile excavator is a reliable and effective tool, which can save a lot of time and energy.

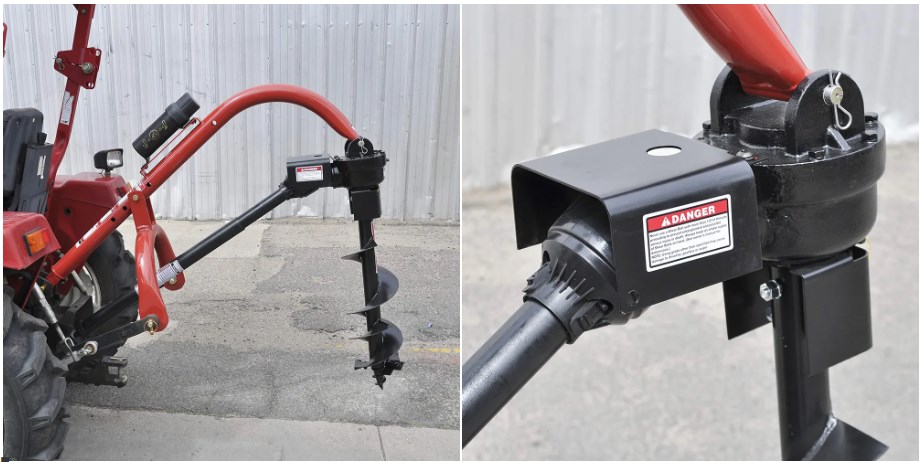

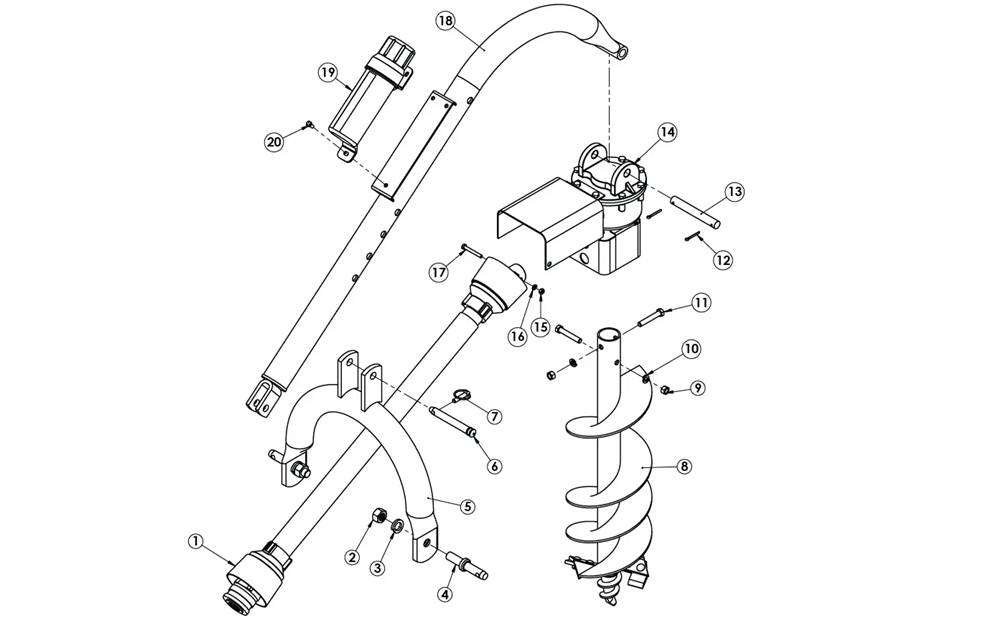

Parts of 400 type three-point pillar digger

Model 400 Post Hole Digger
ITEM #	P/N	Description	QTY
1	27-024	Series 1 Driveline	1
2	95462A545	7/8”- 14 Hex Nut	2
3	91102A037	7/8” Lock Washer	2
4	43-027	7/8” Draw Pin	2
5	24-0016	Model 400 A-frame	1
6	24-0029	A-frame Pin	1
7	43-047	7/16” LYNCH PIN	1
8	N/A	Compact Auger (Various Sizes)	1
9	95462A033	1/2”-13 Hex Nut	2
10	91102A770	1/2”-13 Lock Washer	2
11	91247A724	1/2”-13 X 3” G5 Bolt	2
12	98338A230	5/32” X 1-1/2” Cotter Pin	2
13	24-0028	Boom Pin	1
14	24-0359	45 HP Gearbox with Guards	1
15	95462A031	3/8” -16 Hex Nut	1
16	91102A760	3/8” Lock Washer	1
17	91247A636	3/8”-16 X 3” Bolt, G5	1
18	24-0015	Model 400 Boom	1
19	24-0014	Manual Canister	1
20	92865A581	Bolt, 5/16”-18 X 3/4”, Shcs	3

Model	Model 400 Compact	Model 650 Standard Duty	Model 1000 Heavy Duty	Model 1500 Extra Heavy Duty
SKU	24-0361	24-0362	24-0318	24-0337
Category	0 & 1	1	1	1 & 2
Boom Length	56"	60"	72"	72"
Tubing Diameter	2-7/8"	2-7/8"	2-7/8"	3-1/4"
Draw Pin Width	20"	27"	27"	32-1/2"
Drive ine	Series 1	Series 1	Series 4	Series 4
Gearbox	2.9:1	2.9:1	2.9:1	3.18:1
Auger Diameters	6", 9", 12" (3' lengths)	6", 9", 12"	6", 9", 12", 18", 24"	6", 9", 12", 18", 24"
Weight	150 bs	160 bs	200 bs	235 bs
SKU	24-0361	24-0362	24-0318	24-0337
Features	4 Positions	3 Positions	4 Positions	4 Positions

Part size of 400 three-point pillar excavator

Model # / CAT	A(in) Lower Hitch Point Spread -Max	B(in) Lower Hitch Point Spread -Min	C(in) Clevis/ Ball Joint Outside Width	D(in) Upper Hitch Point Pin Dia
Model 400 / CAT 0, Sub Compact	26-3/8	20-7/8	1.75	0.75
Model 650 / CAT 1	33-1/2	28	1-5/8	1.0
Model 1000 / CAT 1	32-3/8	26-7/8	1-5/16	0.75
Model 1500 / CAT 1 & 2	38-3/8	32-7/8	1-5/16	0.75

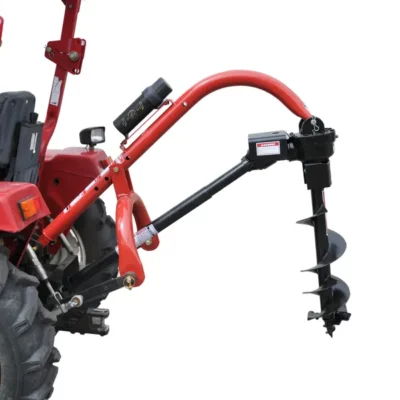

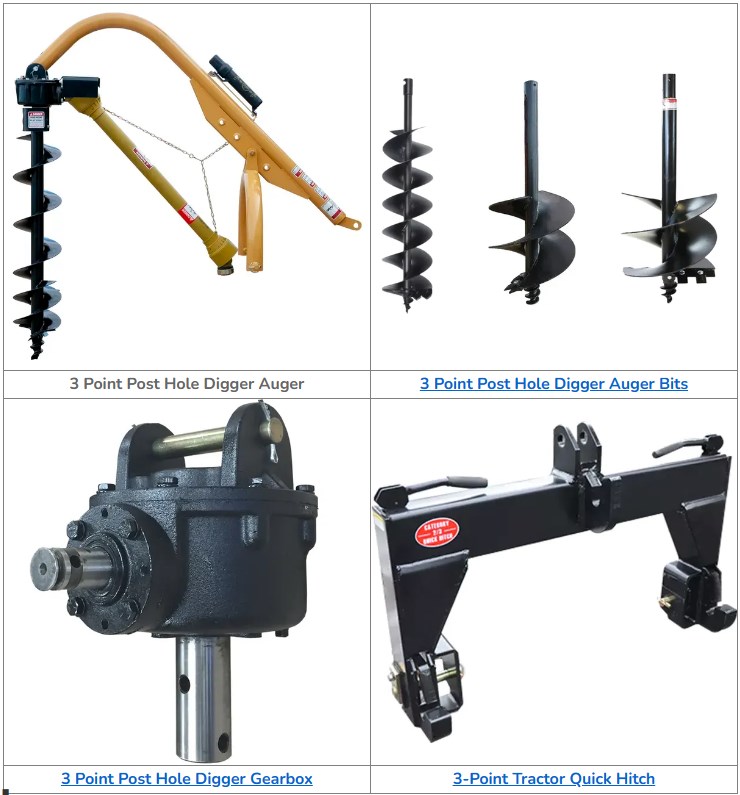

We also provide other three-point drill parts

Series	Shortest Length	Extended Length	Tractor End	Implement End	Common Uses	SKU
1	27	34	1-3/8" x 6 QD	1-3/8" x 6 QD	Fertilizer Spreader	27-010
3	40	54	1-3/8" x 6 QD	1-3/8" x 6 QD	Finishing Mower, Tiller	27-011
4	30	40	1-3/8" x 6 QD	1-3/8" Round	Finishing Mower, Tiller	27-012
4	32	42	1-3/8" x 6 QD	1-3/8" Round	Rotary Cutter	27-013
4	36	43	1-3/8" x 6 QD	1-3/8"x6 Clutch	Rotary Cutter, Tiller	27-014
4	37	50	1-3/8" x 6 QD	1-3/8" Round	Rotary Cutters, Pond	27-015
4	42	58	1-3/8" x 6 QD	1-3/8" Round	Post Hole Digger	27-016
4	48	65	1-3/8" x 6 QD	1-3/8" x 6 QD	Post Hole Digger	27-017
4	53	74	1-3/8" x 6 QD	1-1/4" Round	Post Hole Digger	27-018
5	42	57	1-3/8" x 6 QD	1-3/8" Round	Rotary Cutters	27-019
12	48	64	1-3/8" x 6 QD	1-1/4" Round	Heavy Duty Digger	27-020
14	37	49	1-3/8" x 6 QD	1-3/8" Round	Post Hole Digger	27-021
14	56	77	1-3/8" x 6 QD	1-3/8" Round	5' & 6' Pull Cutters	27-022

Advantages of 400 three-point drill

The 400 type three point pillar excavator has the following advantages: Easy-to-use design: The design of this 3-point column digger is very user-friendly, and it is easy to operate even for novice users. Efficient excavation: The 400 three-point backhole excavator is constructed of heavy steel to ensure efficient excavation with minimum workload. Adjustable depth: Users can adjust the depth of the hole according to their needs, making it an ideal choice for wide application. Wide compatibility: The 3-point quick hitch design connects pile excavators to most tractors, making it versatile and easy to use in different work locations. Durability: The 400 three-point backhole excavator is made of high-quality materials, which can ensure durability and durable use even under harsh conditions. In general, the 400 three-point backhole excavator provides reliable and efficient excavation capacity, making it a valuable supplement to any agricultural or construction equipment series.

Assembly instructions for 400 three-point drill

Step 1: The gearbox of the 3-point rear drilling excavator is transported without lubricant. Fill the top hole with EP90 lubricant or equivalent. The three-point post-drilling digging gearbox can hold 25 ounces (0.7 liters) of fluid. Fill to the bottom of the side plug. Do not overfill as this may damage the seal. Check the oil level every 50 hours of operation. Step 2: Remove the manual and hardware components from manual tank 2. Connect the manual carbon canister 2 to the boom 3 with the hexagon bolt M8 X 16 X 1.25 mm 1.

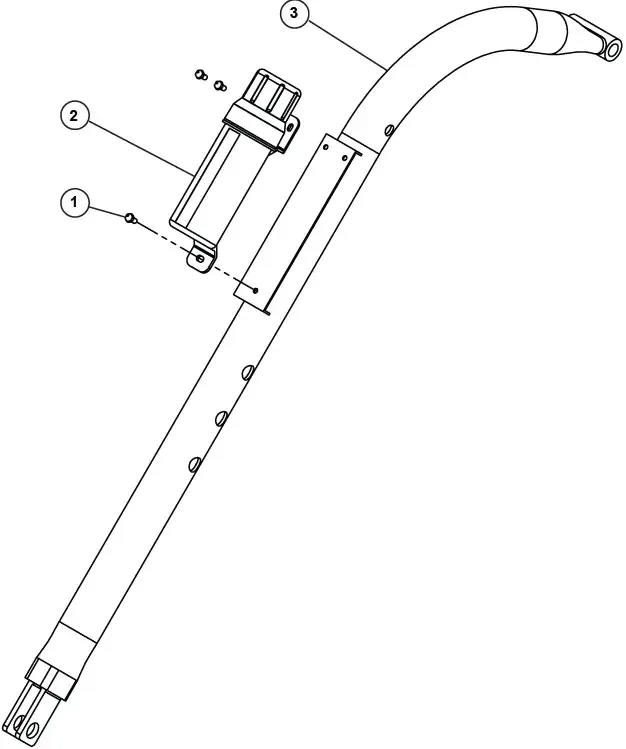

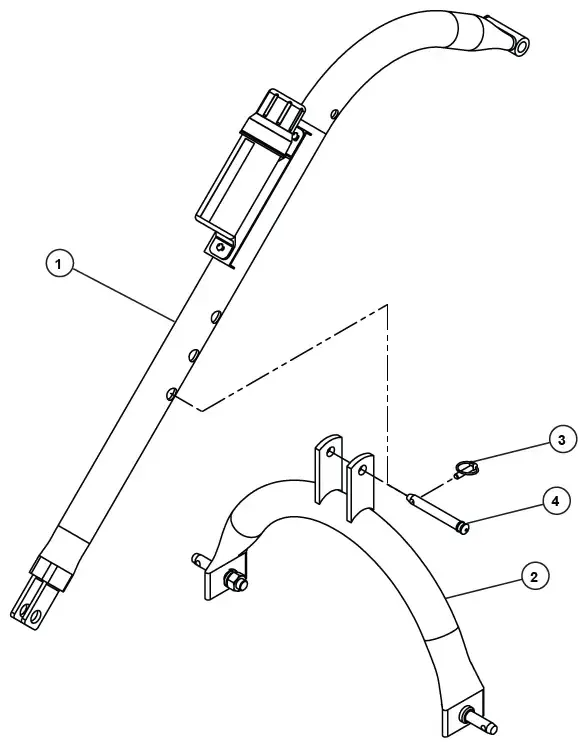

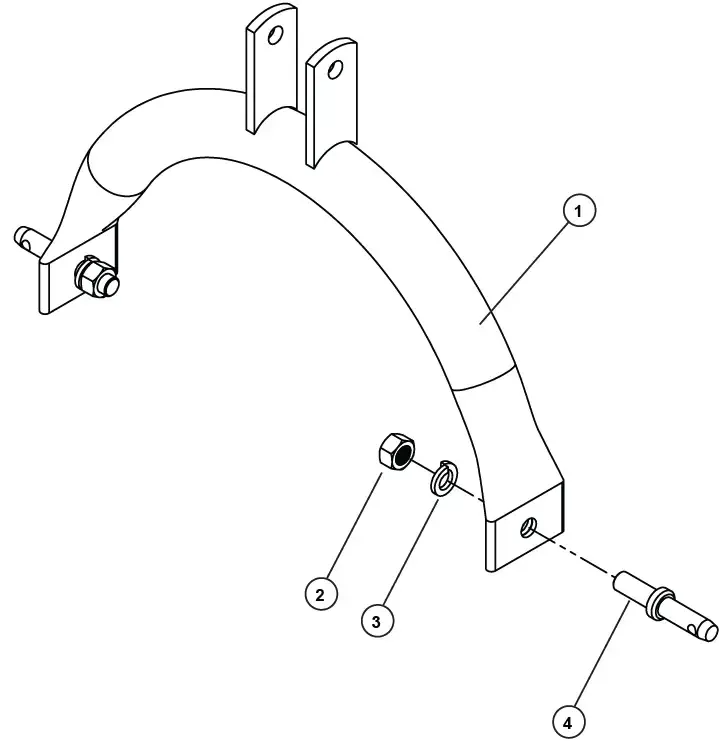

Step 3: Connect the 7/8 "lock washer 3, 7/8" hex nut 2 and traction pin 4 to the "A" frame 5. For Type 650 excavator, type 1 tractor (lift arm spacing is 26 "), use the pin in the inward position. For type 2 tractor (lift arm spacing is 32"), the pin should point outward.

Step 4: Connect the "A" frame assembly 2 to the tractor's three-point lift arm. Connect boom assembly 1 to the tractor. Connect the "A" frame 2 to boom 1 using pins 3 and 4. The size of the tractor and auger will determine which hole is most suitable for angle adjustment. After assembly, it may be necessary to change the position of the "A" frame to the boom. When the tractor lift arm is raised, the auger should not be more than 6 inches from the ground.

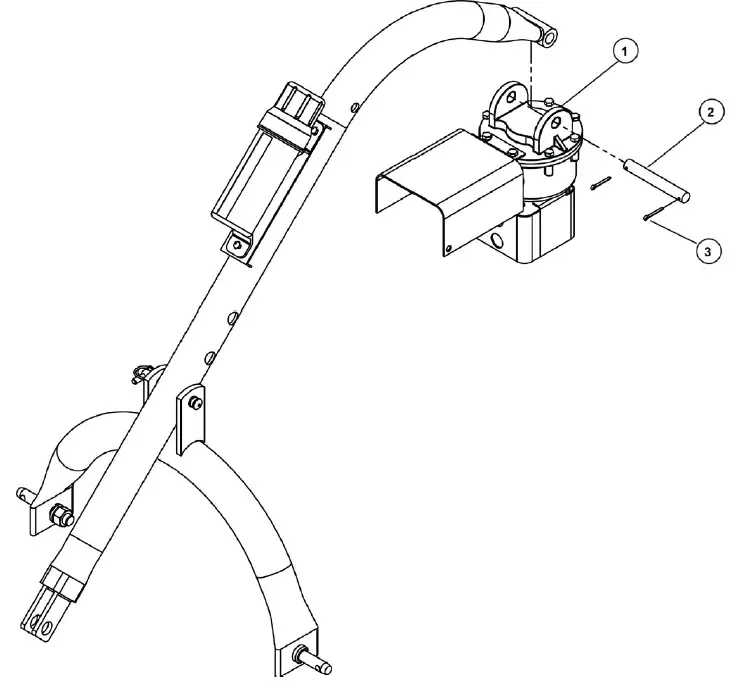

Step 5: Use boom pin 2 to connect the three-point post excavator gearbox 1 to the boom and secure it with cotter pin 3.

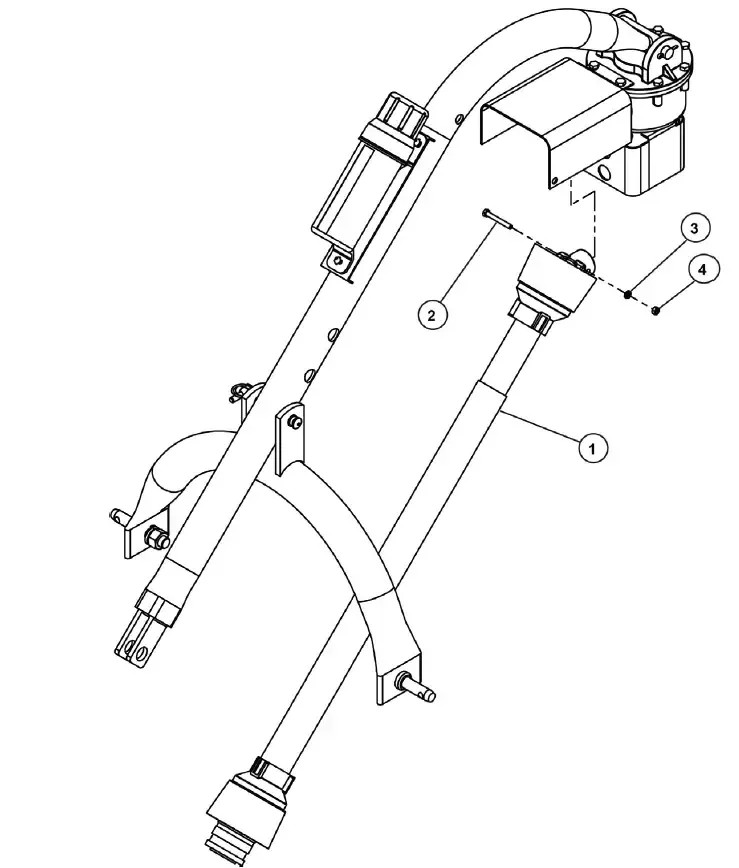

Step 6: Use the hex bolt 3/8 "x 3" G5 2, 3/8 "lock washer 3, and 3/8" - 16 hex nut 4 to connect the power train 1 to the three-point stud excavator gearbox input shaft. take ¼ The "x 3/8" set screw is inserted into the hole on the yoke, which is aligned with the 3/16 "groove on the gearbox input shaft. Tighten loosely. Connect the tractor end of power train 1 to the tractor PTO shaft. Retract the yellow galvanized outer collar and slide it onto the splined PTO shaft of the tractor. When the collar is firmly seated on the shaft, loosen the collar. The tractor end of the driveline has a 1-3/8 × 6 Splines. The use of PTO adapters or extenders is not recommended. addressee: Hexagon bolt 3/8 ″ - 16 x 3 ″ G5 2 provides shear protection. Use only grade 2 or grade 5 bolts to avoid damage to the gearbox or auger. Important: The universal joint should be lubricated with high-quality chassis lubricating oil approximately every 6 months. At the beginning of each season, lubricatethe sliding transmission shaft components with molybdenum grease. All excavators are equipped with a quick release universal joint for 1-3/8-inch spline shaft at the power output end.

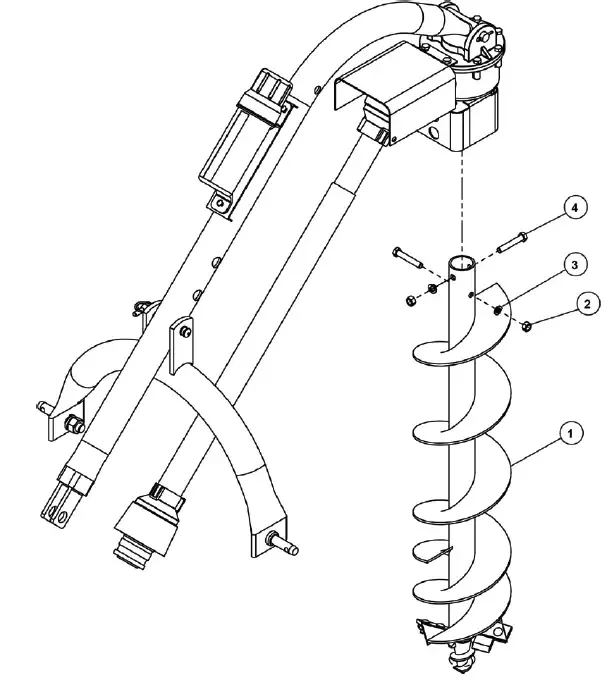

Step 7: Use hexagon bolt 1/2 ″ - 13 × 34, ½” Lock washer 3 and ½” The hex nut 2 connects the auger 1 to the output shaft at the bottom of the 3-point stud digging gearbox. Tighten the hardware.

NOTE:Please refer to the following figure for reference when assembling and installing the excavator on the tractor. If the 7/8-inch
diameter traction pin in the "A" frame is too small for the hole in the lift arm, the type 1 to type 2 traction pin can be
replaced or the bushing can be used to obtain the correct fit.

Material available

Low carbon steel, C45, 20CrMnTi, 42CrMo, 40Cr, stainless steel. Can be adapted regarding customer requirements.

Surface treatment

Blacking, galvanization, chroming, electrophoresis, color painting, ...

Heat treatment

High frequency quenching heat treatment, hardened teeth, carbonizing, nitride, ...

Certifications

FAQ

Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.

Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.

If you have another question, please feel free to contact us.
