Factory Sale Multi Way 6T Valve Hydraulic Valve for Excavator

CharacteristicThe Multi-Way 6T Hydraulic Valve is a critical control component in excavators, designed to manage the flow and direction of hydraulic fluid to various actuators (cylinders, motors). The "6T" typically refers to 6 working ports (A, B, P, T, LS, etc.) and tandem center spool c......

Send Inquiry

Product Description

Characteristic

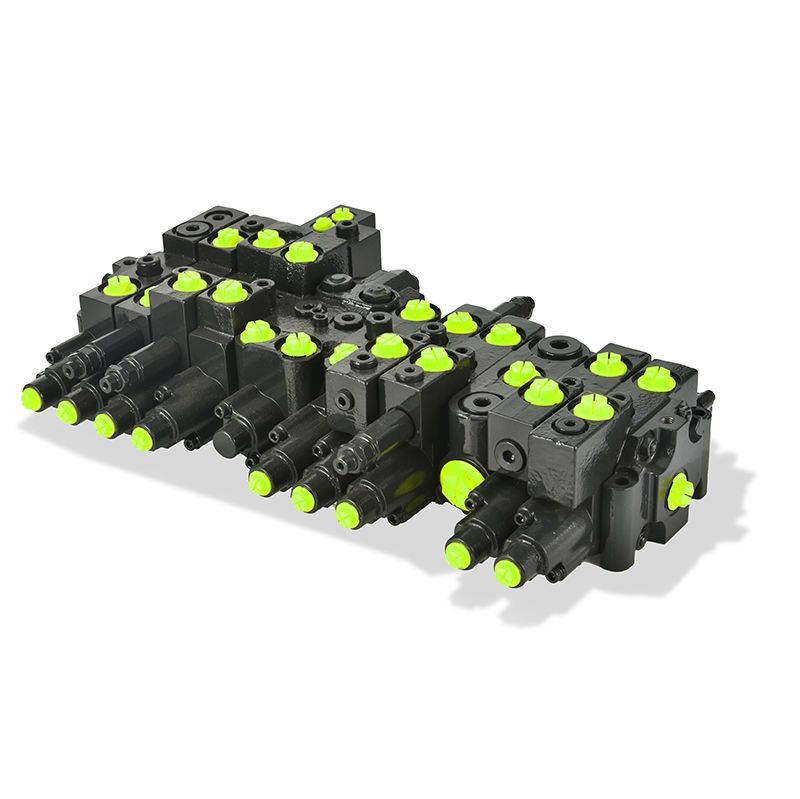

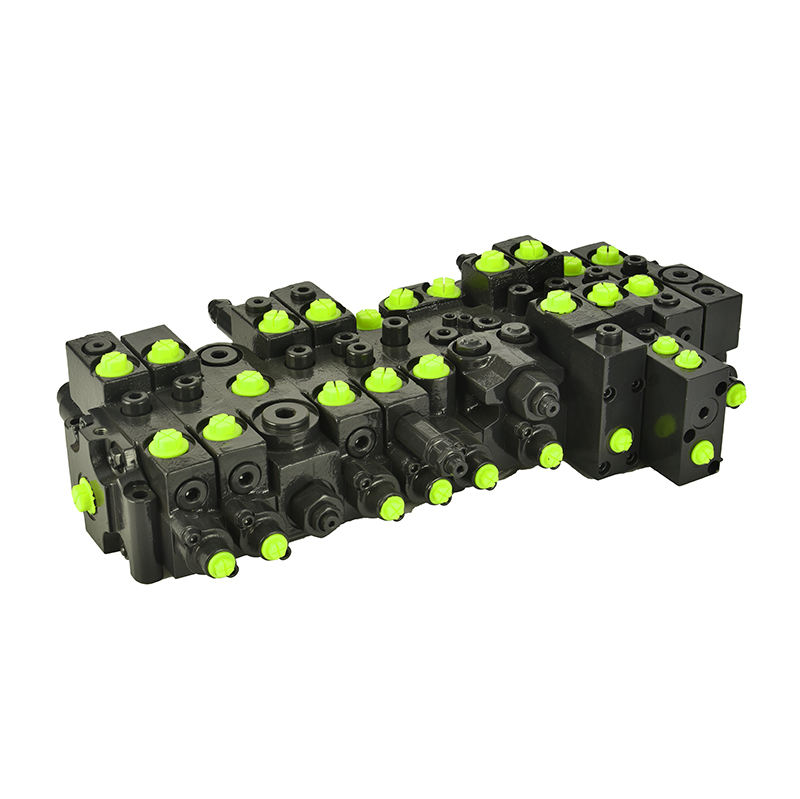

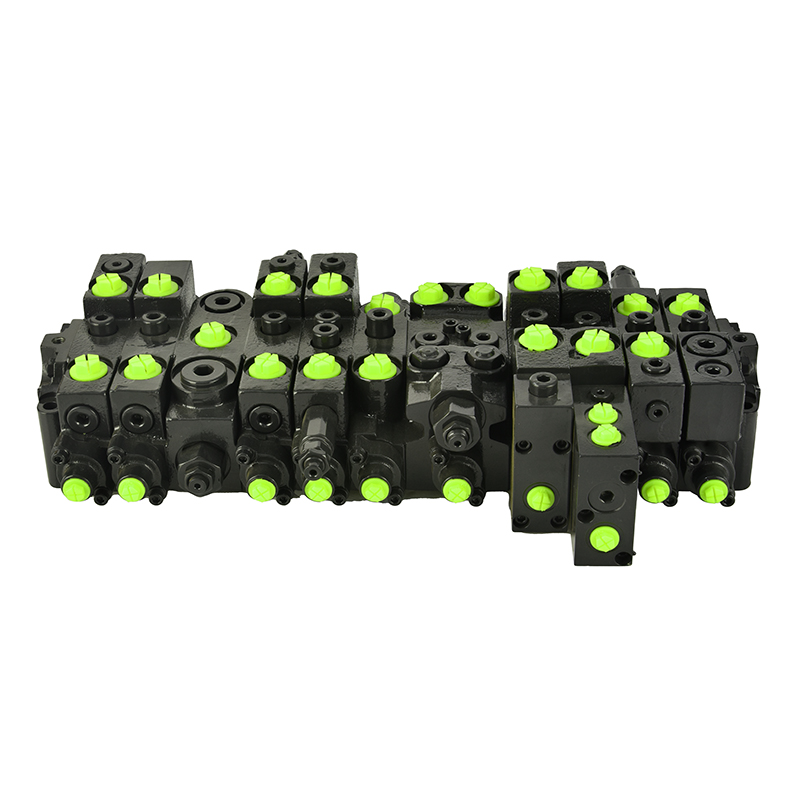

The Multi-Way 6T Hydraulic Valve is a critical control component in excavators, designed to manage the flow and direction of hydraulic fluid to various actuators (cylinders, motors). The "6T" typically refers to 6 working ports (A, B, P, T, LS, etc.) and tandem center spool configuration, making it ideal for complex hydraulic circuits in construction machinery.

Feature	6T Valve	Conventional Valve
Neutral Flow	Tandem bypass (P→T)	Closed center (pressure buildup)
Efficiency	Load-sensing compatible	Fixed pump flow
Flexibility	Modular, expandable	Limited ports
Precision	Proportional options available	Manual only

Key Features
Tandem Center Spool Design
Allows neutral flow bypass (P → T) when valves are inactive, reducing pressure buildup and energy loss.

Ensures smooth transitions between operations (e.g., boom, arm, and bucket movements).

6-Port Configuration
P (Pump Inlet) – High-pressure supply from the hydraulic pump.

T (Tank Return) – Return line to the reservoir.

A & B (Actuator Ports) – Connect to hydraulic cylinders/motors for bidirectional control.

LS (Load Sensing) – Dynamically adjusts pump flow based on demand, improving efficiency.

Optional Auxiliary Ports – For additional functions (e.g., hammer circuits, thumb attachments).

Proportional or Manual Control
Lever-operated (manual) for standard excavators.

Electro-hydraulic (proportional) for precision in advanced models (e.g., Hitachi ZX series).

High Pressure & Flow Capacity
Rated for 250–350 bar (3,600–5,000 psi), handling high-power excavator workloads.

Flow rates up to 100–200 L/min (depending on valve size).

Durability & Anti-Clogging
Hardened spools and sleeves resist wear in abrasive environments.

Application Scenarios:
Boom/Arm/Bucket Control
Directs flow to cylinders for lifting, digging, and dumping motions.

Swing & Travel Motors
Manages rotation and movement via hydraulic motor circuits.

Attachments (Optional)
Supports auxiliary hydraulics for hammers, grapples, or augers (via 3rd/4th spool sections).

Load-Sensing Systems
Optimizes pump output to match real-time demands, saving fuel (common in modern excavators like CAT 320).

For more details, please click here to contact us!

EVER POWER has long been committed to management innovation and model innovation, actively exploring the path of enterprise informatization and digitalization, and taking the road of intelligent transformation with deep integration of manufacturing and the Internet. It has successively passed ISO9001 quality management system, IS014001 environmental system, OHSAS18001 occupational health and safety system certification, two-in-one management system assessment and DCMM data management capability maturity level assessment. The digital workshop built in 2019 was rated as a digital workshop in Zhejiang Province. From 2020 to 2021, the two-year construction period of the hydraulic motor smart factory project created the first automated, lean and intelligent "smart factory" in the hydraulic industry, making personnel productivity and batch product stability, new product development cycle, enterprise operating costs and other indicators achieve industry leadership. In 2022, the digital workshop for flexible processing of cycloidal motors was built, which passed the acceptance and was put into use in 2023, further promoting the upgrading of various business models and improving the company's management and operation capabilities. Hydraulic motors have been highly praised by the market for their small size, high torque and high safety. The domestic market share ranks among the top, accounting for nearly 61% of the market in Zhejiang Province. At the same time, the company actively explores the international market, and its products are exported to more than 80 countries and regions including Germany, the United Kingdom, Italy, the United States, Canada, Brazil, Russia, South Korea, etc. EVER POWER uses ingenuity to create excellent quality, takes it as its mission to create a national brand, and becomes a leader in the hydraulic ecology!

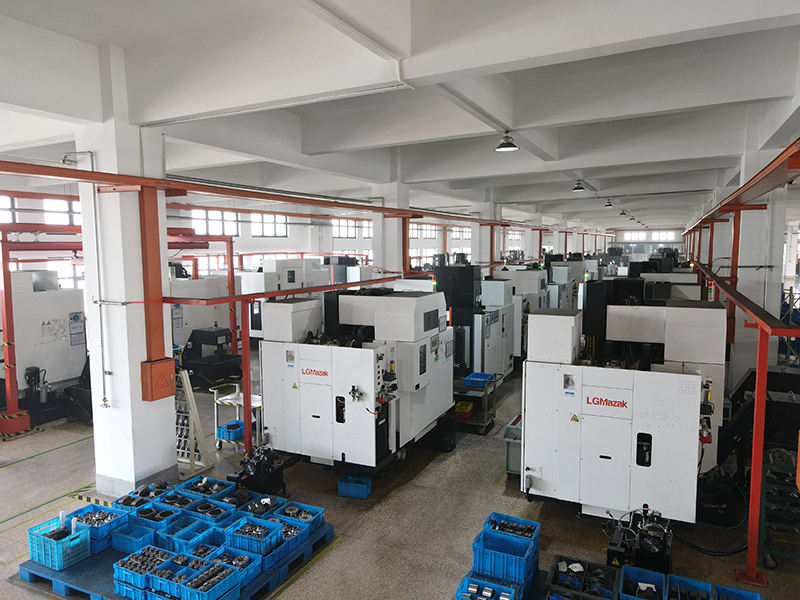

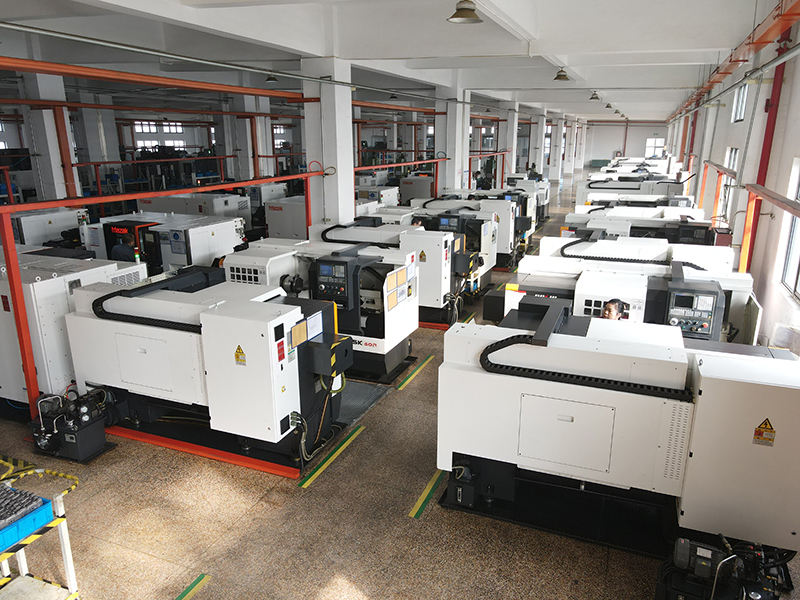

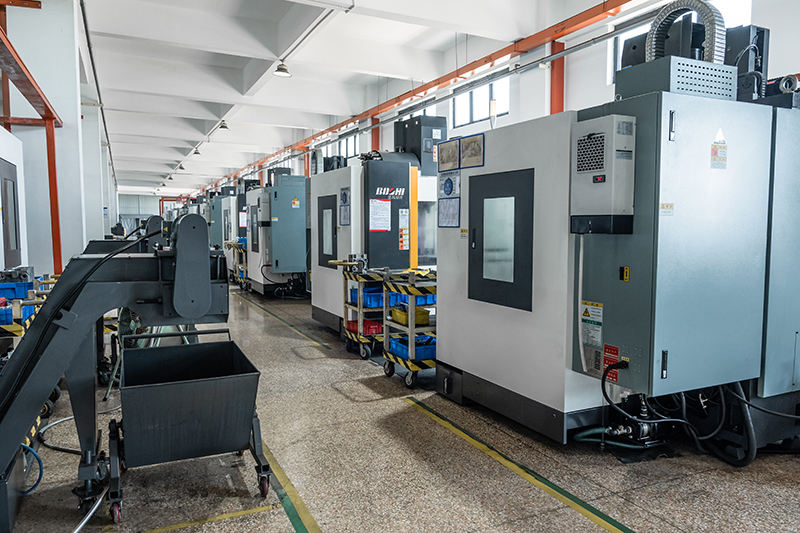

Our company has invested a total of 81 equipment, 39 machining centers, and 36 CNC machine tools in the production line, including 33 imported equipment, for the production and processing of a series of precision parts and accessories for the company, achieving automated production, reducing labor intensity and improving production efficiency, merging processes, and shortening the length of the production line. The equipment is mainly imported to improve the product assurance capability and market competitiveness of the entire production line.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
