F50 F80 Flex Shaft Motor Water Pump Hydraulic Connector Fenaflex Fenner Pvc Tire Flexible Rubber Tyre Coupling With Flange
Product Name: Tyre couplingSurface treatment: phosphating, blackening and sprayingCoupling type: tyre couplingMaterial: RubberScope of application: metallurgy, steel rolling, mining, chemical industry, shipbuilding, pumps, fans, etc.Features: the tire coupling has good shock absorption and buffering......

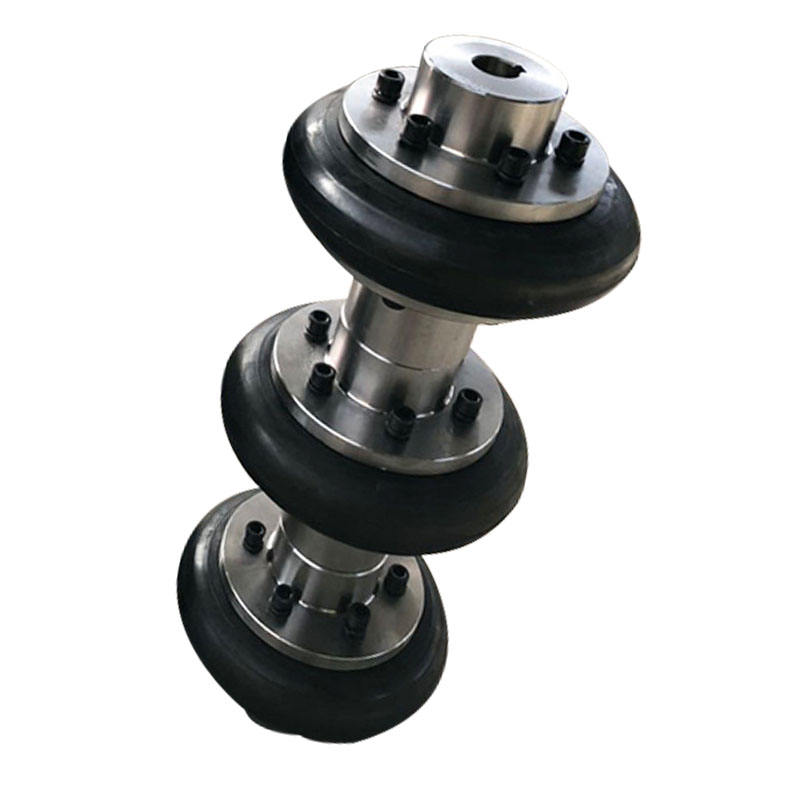

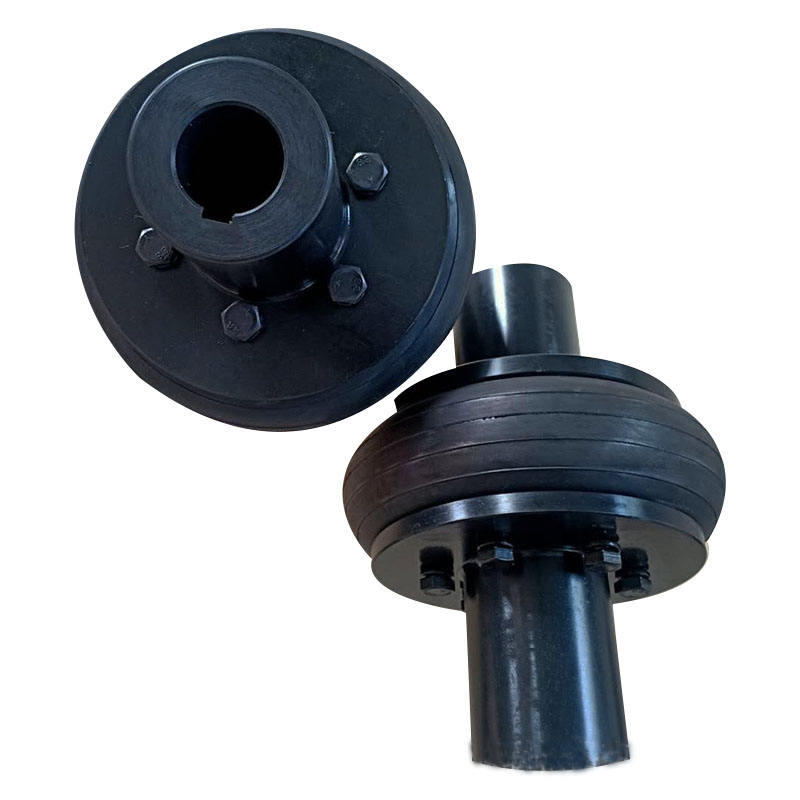

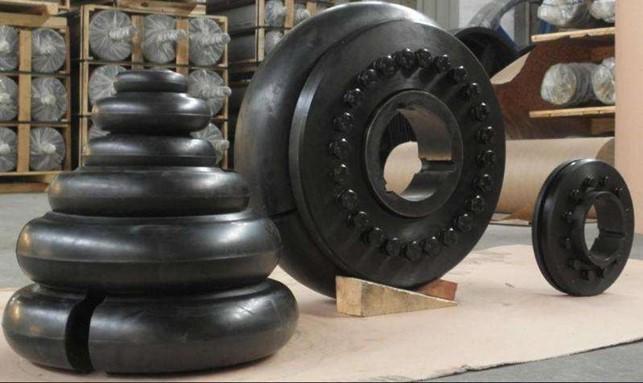

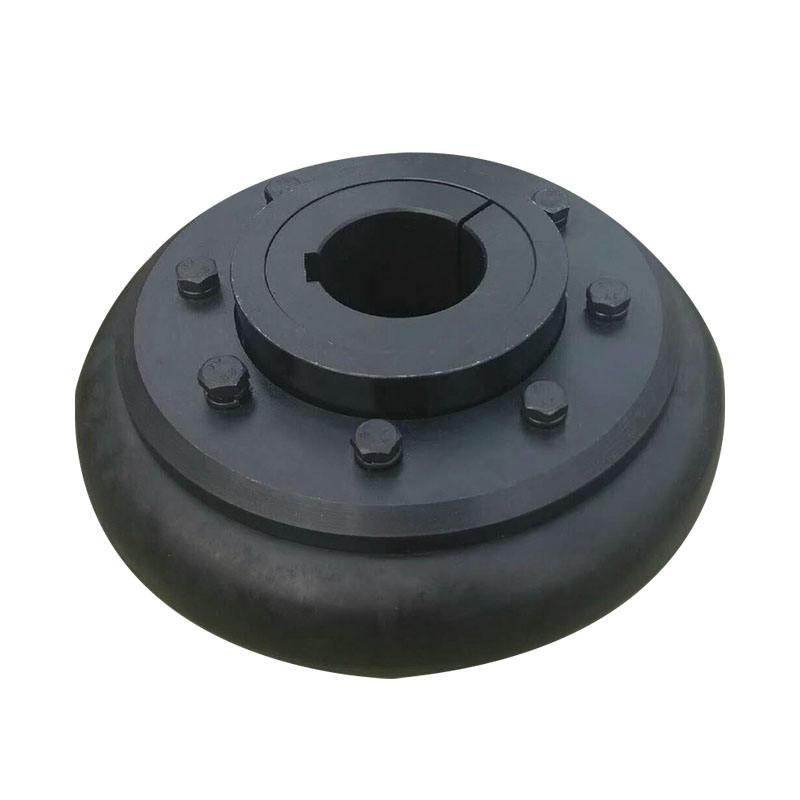

Product Name: Tyre coupling
Surface treatment: phosphating, blackening and spraying
Coupling type: tyre coupling
Material: Rubber
Scope of application: metallurgy, steel rolling, mining, chemical industry, shipbuilding, pumps, fans, etc.
Features: the tire coupling has good shock absorption and buffering effect and the performance of compensating the deviation between axles. It is widely used in the occasions of impact vibration, variable forward and reverse rotation and frequent starting.
This coupling is a kind of high elastic coupling with good shock absorption and excellent inter-axle offset compensation performance. The working temperature is - 20~80 ℃, and the transmission torque is 10~20000N. m. It is suitable for wet, dusty, impact, vibration, variable forward and reverse rotation, and frequent starting conditions. It is also easy to disassemble and assemble without lubricating oil
1.High elastic material, silent work.
The ability of compensating relative displacement of two shafts is large, and the transmission torque is 10-2500n. M
2.Selected 45 steel, reliable quality.
The coupling theme is made of high quality 45 # steel
3.Deburring and smooth surface.

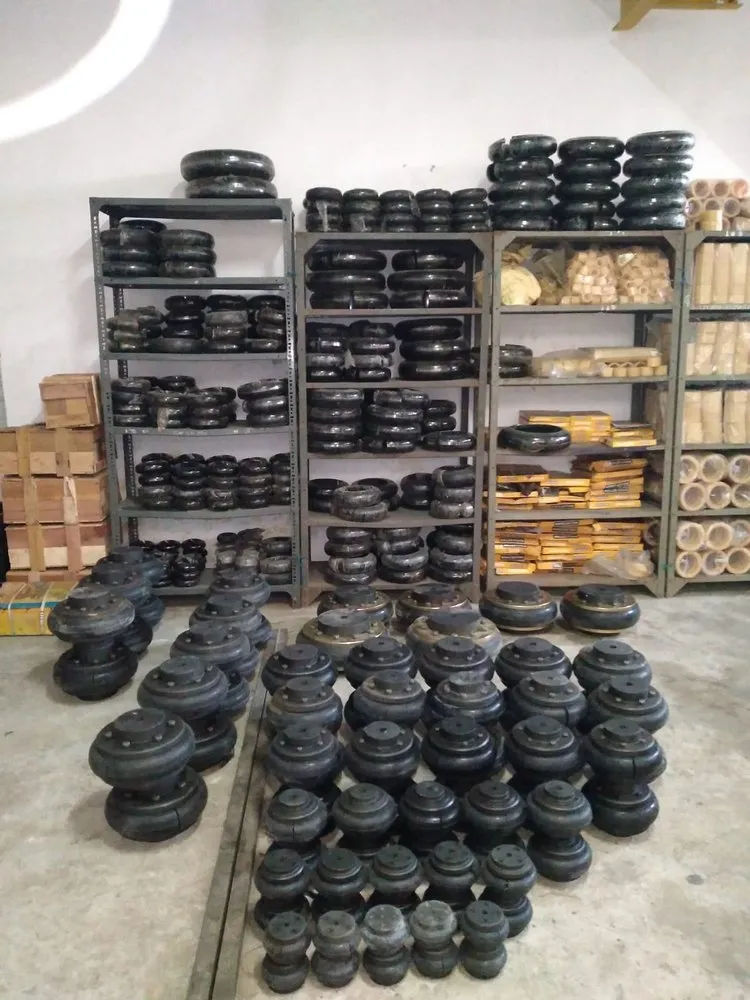

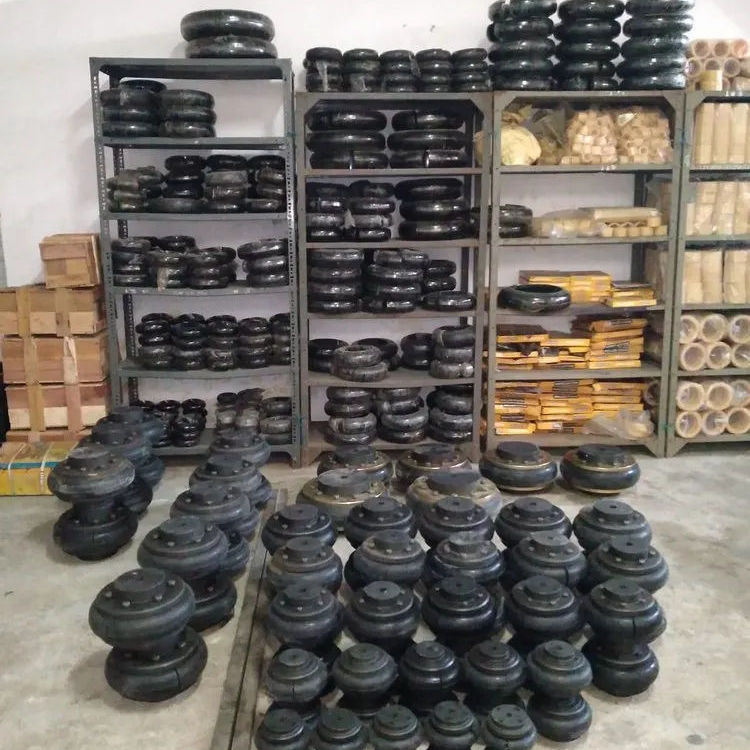

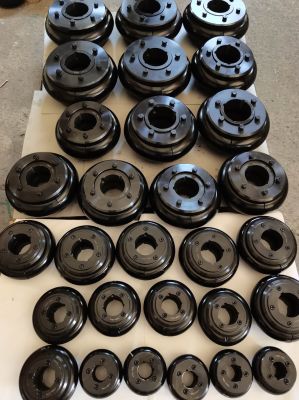

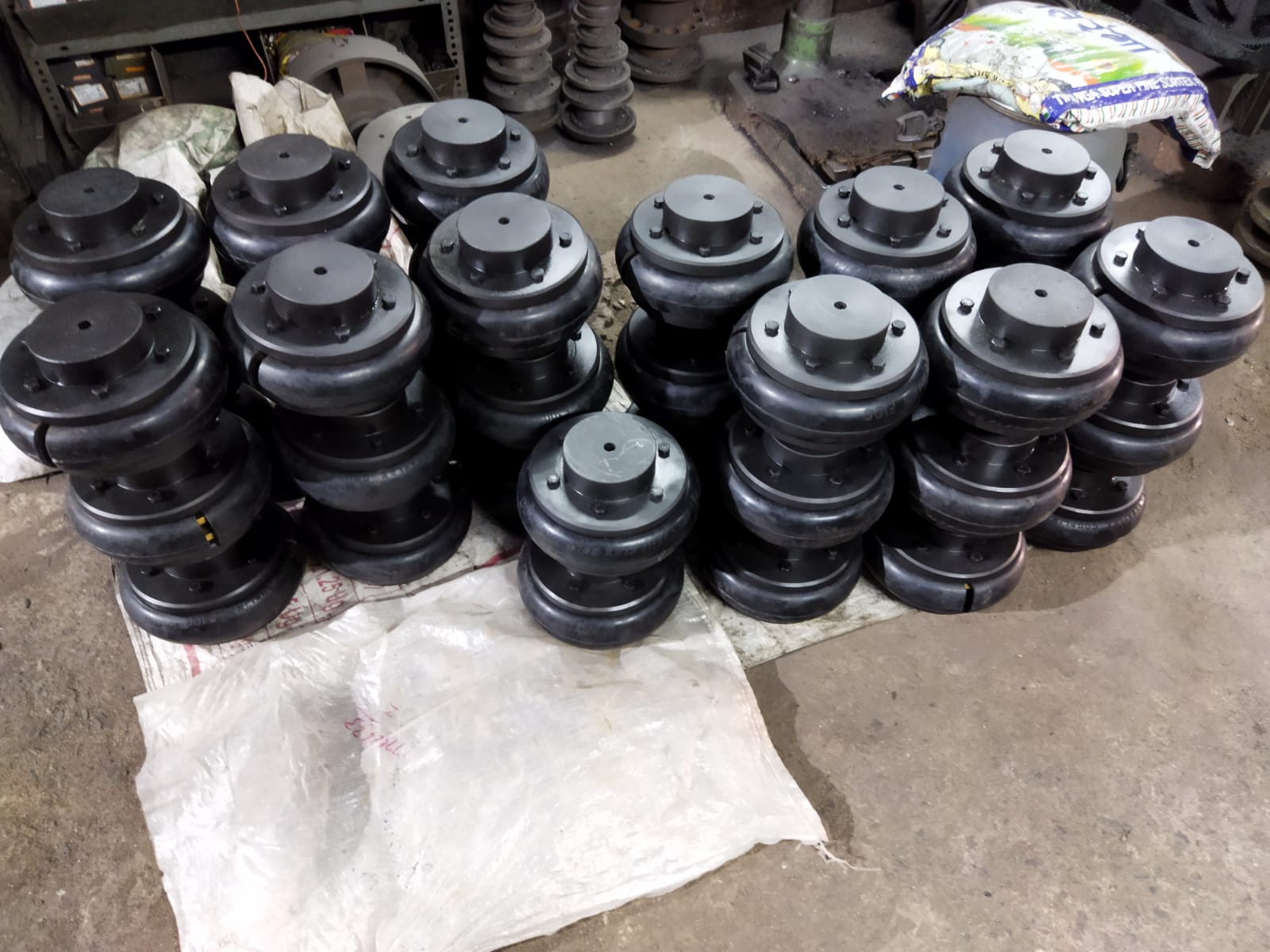

4.Complete models, a large number of stock, complete specifications.
Support non-standard customization. Please contact customer service. Various styles and complete types. Welcome to order!
5.Good damping. No lubrication, working temperature is 20-80 ℃
Click this products picture can look over the relevant products
Click here for more details!

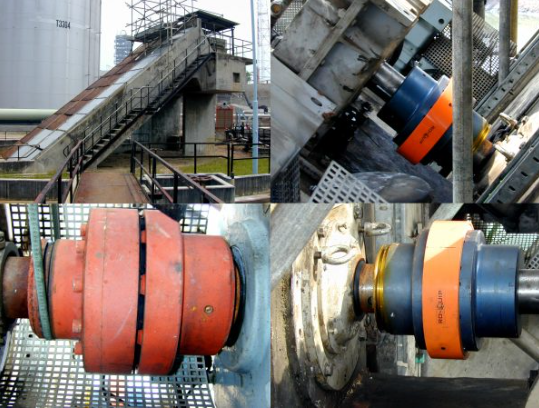

Applications of Tyre Couplings
Tire couplings are widely used in a wide range of industries and machinery due to their unique properties, especially their ability to handle various types of shaft misalignment and absorb shock and vibration.
1. General Industrial Applications

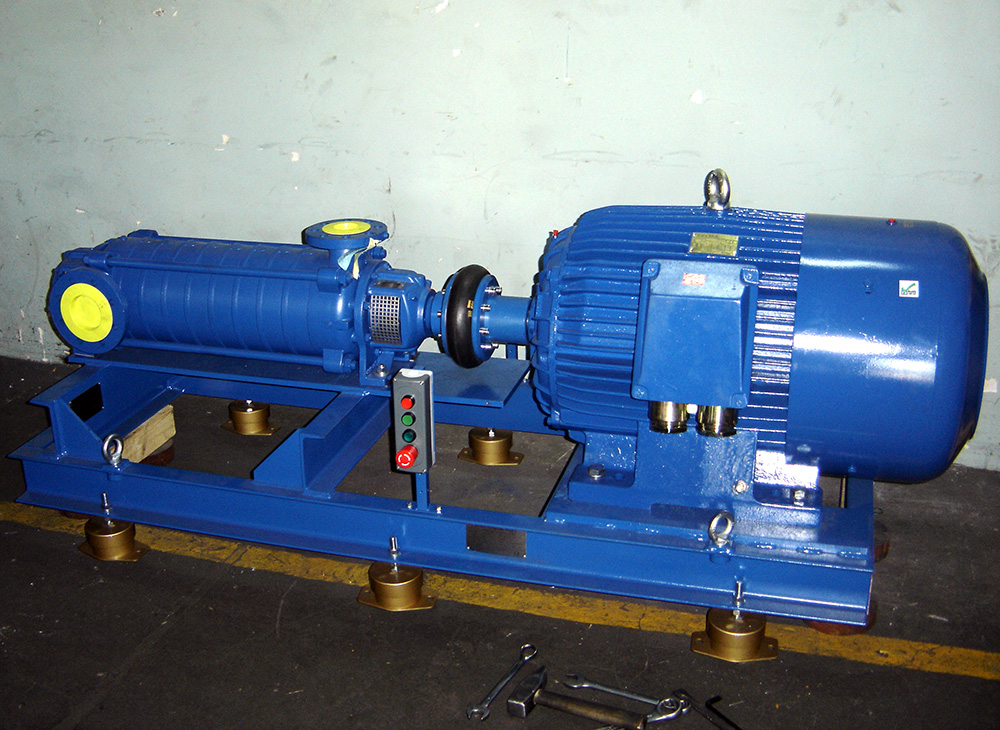

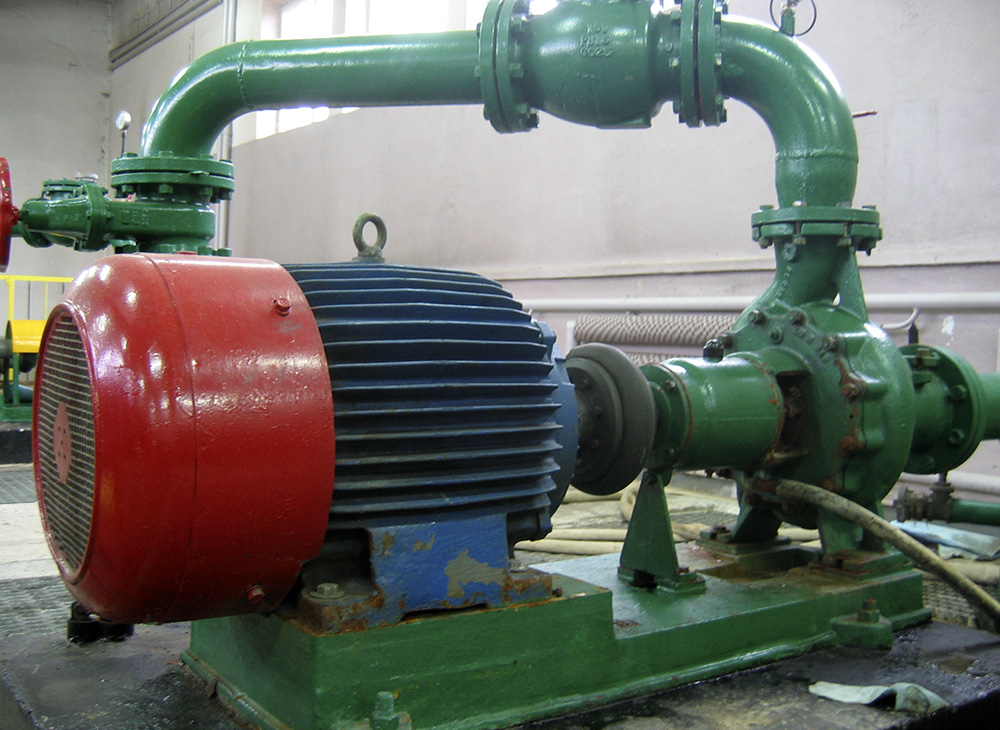

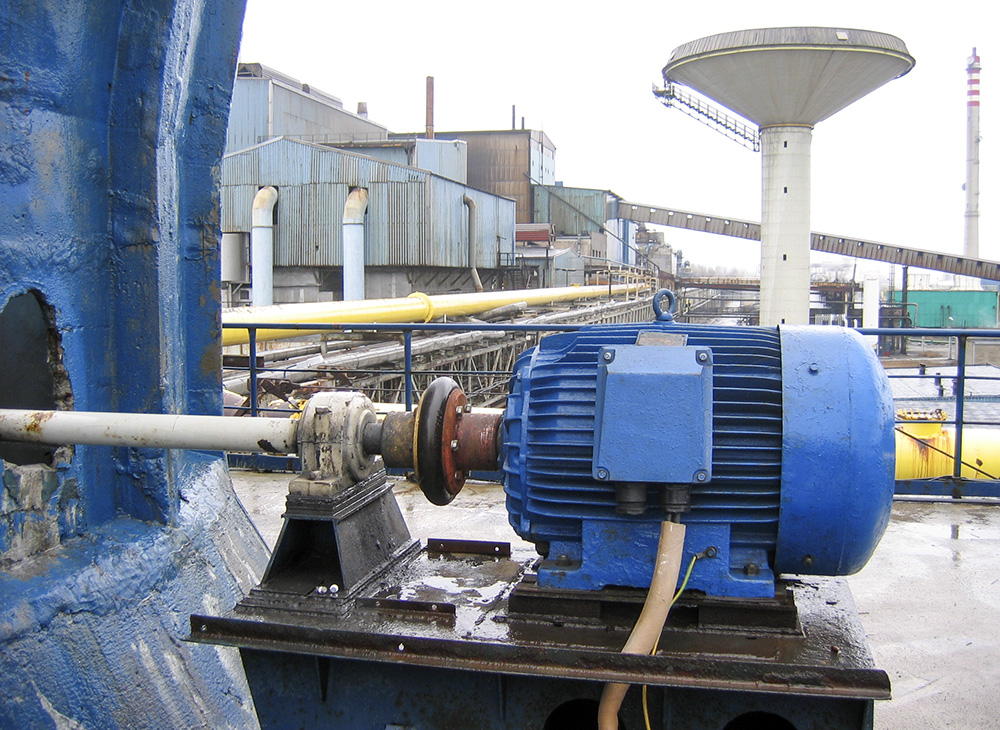

Pumps: Connect electric motors to various types of pumps (centrifugal pumps, positive displacement pumps, etc.) in water treatment plants, chemical processing and general fluid transfer. Its ability to handle misalignment and damp vibration protects the bearings of pumps and motors.
Fans and Blowers: Transmit power to large industrial fans and blowers in ventilation systems, dust collection and air handling units, which require smooth operation and vibration reduction.
Compressors: Connect prime movers (motors, engines) to air or gas compressors, absorbing torsional vibrations that are usually inherent in compressor operation.

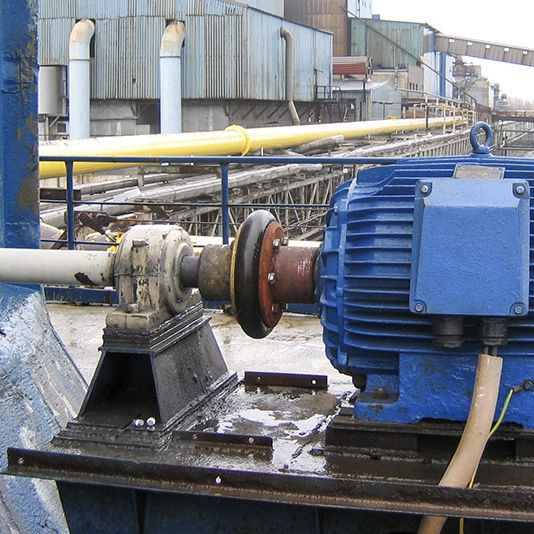

Conveyors: Drive the head roller of a belt conveyor or the drive shaft of other types of conveyors, absorbing shock loads generated when materials are started or stopped.
Agitators and mixers: Connect motors to mixing equipment in various industries (e.g. food processing, chemicals, waste treatment) to withstand shock loads and vibration caused by changes in material consistency.
Generators: Connect prime movers (diesel engines, turbines) to generators to ensure stable power generation by suppressing torsional vibrations.
2. Heavy Industrial Applications
Mining and Quarrying: Widely used in crushers, screens, heavy conveyors and other material handling equipment. Its rugged design and shock absorption capabilities are well suited to the harsh, shock-prone conditions in these environments.
Cement Manufacturing: Powers machinery such as kilns, mills and conveyors, which are often subject to high shock loads, dust and temperature changes.
Steel Mills: Used in various drives in the steel production process, which need to withstand high temperatures, heavy loads and severe vibrations.
Paper Mills: Used in wood pulp processing and paper production machinery, where continuous operation and vibration control are critical.
3. Marine and Offshore Applications
Propulsion Systems: Connect marine engines to gearboxes or propeller shafts to reduce engine vibrations and accommodate minor misalignments caused by hull bending.
Thrusters and Auxiliary Machinery: Used in a variety of auxiliary systems on ships and offshore platforms, including pumps, winches, and generators.
4. Other Specific Applications
Food Processing: In mixers, conveyors, and processing equipment, hygiene, vibration control, and reliable power transmission are critical.
Agricultural Machinery: In some large agricultural machinery, engines are connected to gearboxes or implements to ensure smooth power transmission and absorb operating shocks.
Vehicle Testing (Dynamometer): Roller systems used for vehicle testing absorb vibrations and accommodate misalignments when vehicles travel on rollers.
Tire couplings are favored in these applications because they offer the following features:
High flexibility: Accommodates angular, parallel, and axial misalignments.
Excellent shock absorption: Reduces stress on connected equipment, resulting in longer component life and lower operating noise.
Absorbs shock loads: Protects machinery from sudden shocks.
Easy installation and maintenance: Flexible elements can usually be replaced without moving the connected machine.
No lubrication required: Reduced maintenance effort.
Ever-power is a professional manufacturer specializing in the development and production of coupling transmission parts, engaged in the research and production of couplings, reducers and supports. We have complete equipment and strong technical force to produce various types of couplings. Our products mainly include: various coupling accessories, diaphragm couplings, light universal joint couplings, heavy universal joint couplings, plum blossom elastic couplings, spiral elastic couplings, tooth couplings, chain couplings, torque couplings, expansion coupling sleeves, elastic pin couplings, etc.
Packaging: Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )
Shipping : 1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package. 2. Customized products delivery time should be determined according to the number.
