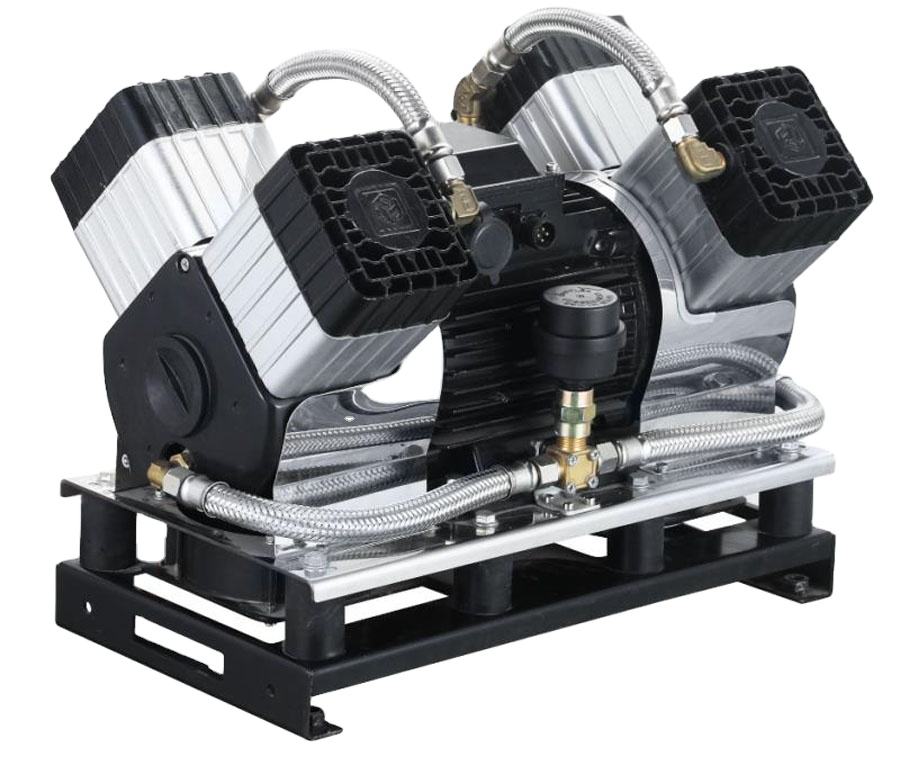

2 Cylinder 750w10l 8bar Oxygen Generator Air Pump Large Displacement Small Silent Piston Air Compressor

Oil-Free Piston Air CompressorProduct structure features:1.The 2-cylinder machine adopts a two-cylinder V-shaped distribution, and the working force is more symmetrical, which reduces the influence of the measured stress on the machine;2.The machine adopts the direct connection method of the host, a......

Send Inquiry

Product Description

Oil-Free Piston Air Compressor

Product structure features:1.The 2-cylinder machine adopts a two-cylinder V-shaped distribution, and the working force is more symmetrical, which reduces the influence of the measured stress on the machine;2.The machine adopts the direct connection method of the host, and the energy transmission efficiency is as high as 98%, which is 93% higher than the traditional belt transmission efficiency3.The exhaust separation structure is adopted (the intake port is on the piston, and the exhaust port is on the cylinder head) to prevent the exhaust temperature from affecting the intake temperature and reduce the compression heat flat temperature point4.The 24V large wind power cooling fan has excellent heat dissipation performance and guarantees safer use.5.The intake and exhaust adopts valve block design, which has better sealing performance, reduces compression heat, reduces leakage, and increases exhaust volume.

Product application industries:

Medical, natural gas filling stations, small oxygen and nitrogen generation, ozone generators, new energy vehicles, laboratory instrumentation gas, dry cleaning industry, communications industry, etc.

Type	Power(Kw)	Voltage(V)	Rotating speed(r/min)	Efficiency (L/min) 10bar	Displacement (L/min)0bar	Pressure (bar)	Cylinder
QX-D55-2V	1.5	220/380	1440	170	285	8-10	2*-55
QX-D60-3G	2.2	220/380	1440	200	400	8-10	3*-60
QX-D55-4V	3.0	220/380	1440	320	570	8-10	4*-55
QX-D60-6G	4.5	220/380	1440	400	800	68-10	2*-60

Click here for more air compressor models
