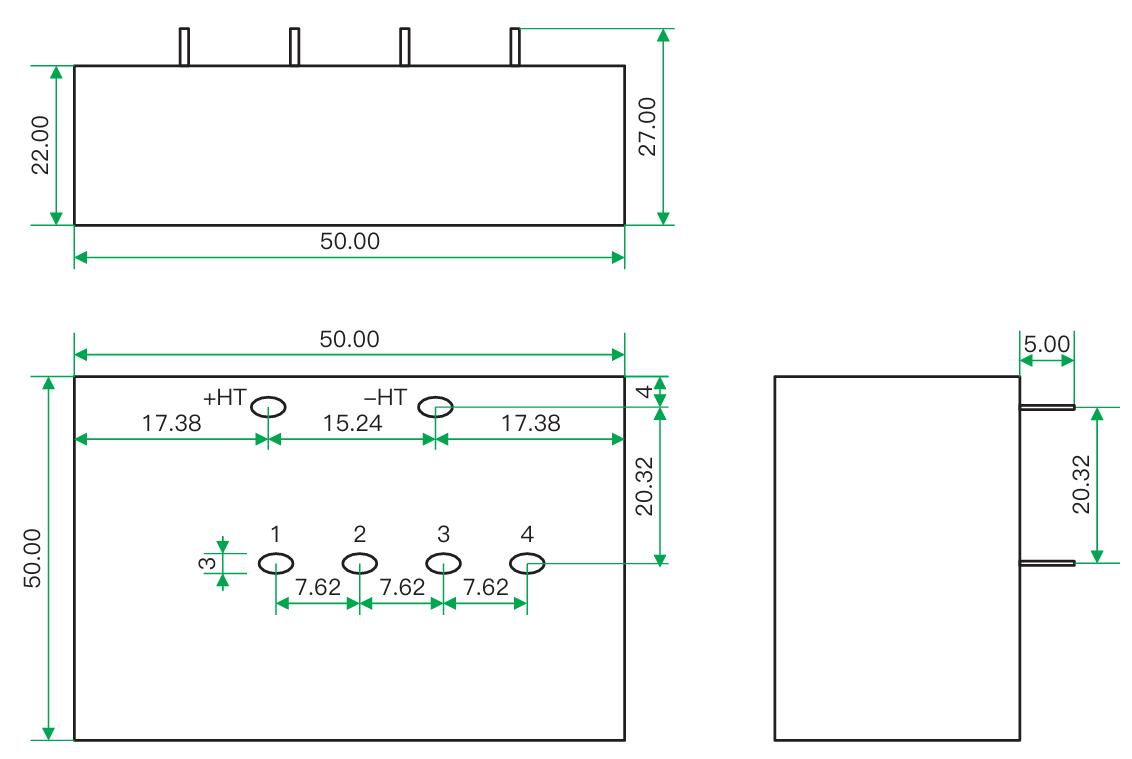

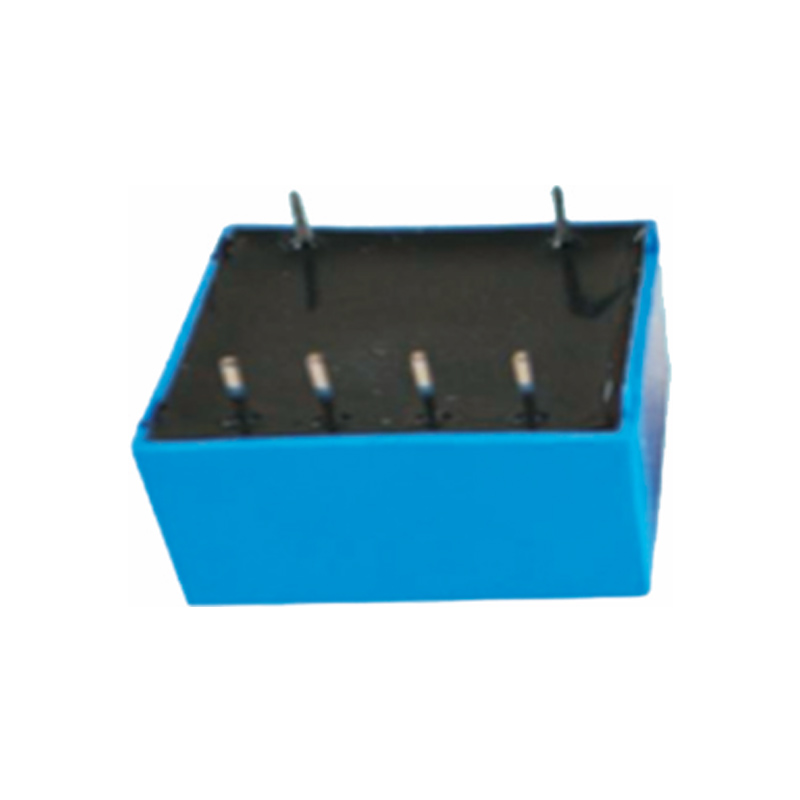

SVFP Series High Precision Pin Type Voltage Sensor for Servo Motor Power Switch

Raydafon Group's SVFP Series High Precision Pin Type Voltage Sensor for Servo Motor Power Switch delivers unparalleled accuracy for power monitoring. Ideal for engineers and OEMs, this sensor ensures reliable performance in industrial applications, reducing downtime and enhancing efficiency. Its innovative pin-type design and superior build quality set it apart, offering peace of mind with every use. Experience the difference and optimize your servo systems today.

Send Inquiry

Product Description

Our high-precision current sensors are designed based on advanced fluxgate principle and have excellent performance. Its main features include: • High accuracy and excellent linearity: ensure accurate measurement results. • Low temperature drift and low zero drift: maintain stable performance under various environmental conditions. • Fast response time: respond to current changes in real time to improve system efficiency. • Strong anti-interference ability: effectively resist external electromagnetic interference and ensure data reliability. • High overload capacity: can work stably under extreme conditions. • Small additional inductance and no insertion loss: reduce the impact on the circuit and improve the overall performance.

Model	SVF100G	SVF100G	SVF300G	SVF500G
Electrical Parameters
Measuring range	120%
Range input	0~±100V	0~±200V	0~±300V	0~±500V
Rated measuring output	±50mA	±50mA	±50mA	±50mA
Power supply voltage	±12V~±15V ±18V~±24V
Current consumption	±30mA (@±15V)

Accurate dynamic performance parameters
Accuracy	≤±0.2%
Linearity	≤±0.1%
Temperature drift	≤±10μA
Response time	≤1μs
Offset current	T=25℃, ≤±5μA
Band width	DC 50kHz
Load resistance	0-100Ω
Isolation withstand voltage	5kV/50Hz/1min×1mA

AC variable frequency speed regulation, servo motor, electrostatic conversion of DC motor traction, battery power supply, UPS uninterruptible power supply SMPS switching power supply, welding machine power supply, electric locomotive, power grid monitoring, electric drive ship, photovoltaic, wind power, Scanner, MRI

Raydafon Technology Co., Ltd. was established in 2010. It is a high-tech enterprise engaged in system research and development, production, sales and service in the fields of high-speed signal processing, electromechanical control, etc. The company is guided by military development, driven by scientific and technological innovation, and supported by talent development. It has been deeply involved in the electronics industry for more than ten years and has a high-quality, high-tech and high-level engineering and technical team. Electricity sensors, transmitters, and mutual inductors are the electricity isolation detection products launched by Raydafon Technology in recent years in response to market demand and combined with the company's own product structure advantages. After years of continuous improvement and updating of this type of product, several major series and hundreds of specifications have been formed. The products are widely used in communications, instrumentation, metallurgy, railways, navigation, aerospace and other fields and are generally recognized by users.

Hot Tags: SVFP Series Voltage Sensor, Pin Type Voltage Sensor Manufacturer, Servo Motor Power Switch Supplier
